PEDF Energy Storage

• Efficient energy utilization

• Flexible energy management

• Enhance power supply reliability

• Low carbon and environmentally friendly

• Modularity and scalability

• Adapt to multiple application scenarios

• Safety and economy

• Enhance the interactivity of the power grid

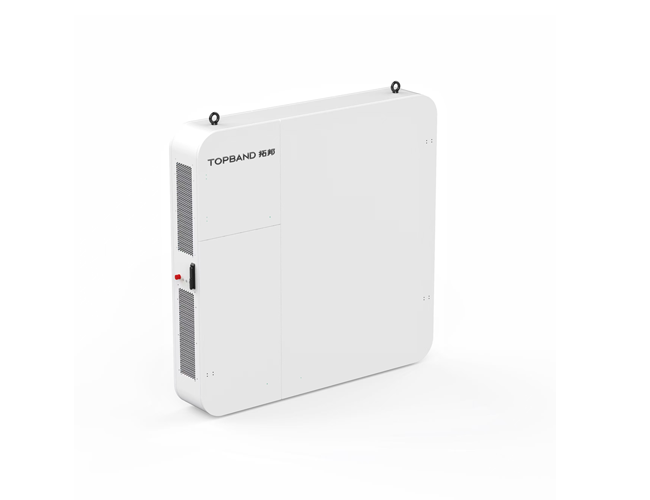

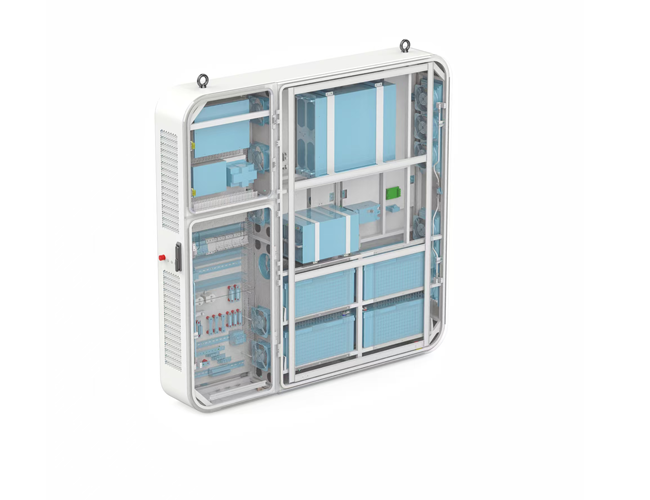

Product Introduction

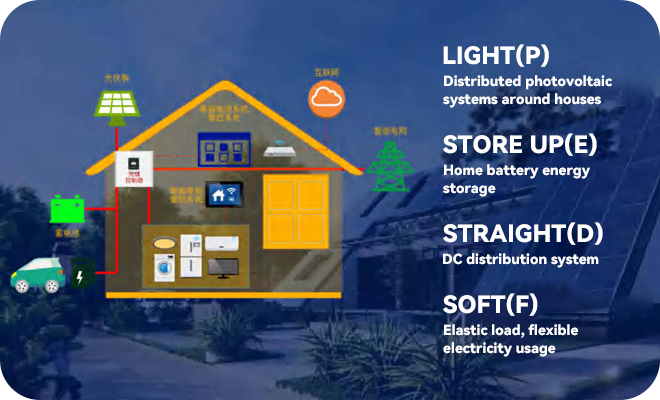

Light storage direct flexible is a new energy system architecture that integrates photovoltaic power generation, energy storage systems, DC distribution, and flexible power consumption.

Application

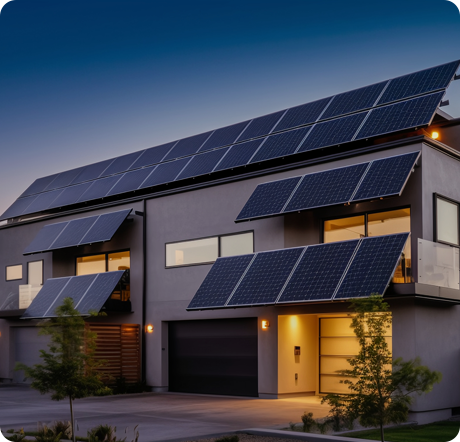

: Residential buildings
Realize household energy self-sufficiency and reduce electricity costs.

: Commercial buildings
Meet the electricity demand of large commercial buildings and achieve refined energy management.

: Industrial building
Provide power support for industrial equipment to ensure production continuity.

: Energy production
Photovoltaic power generation units convert solar energy into direct current electricity, which is directly used for DC loads or stored in energy storage systems.

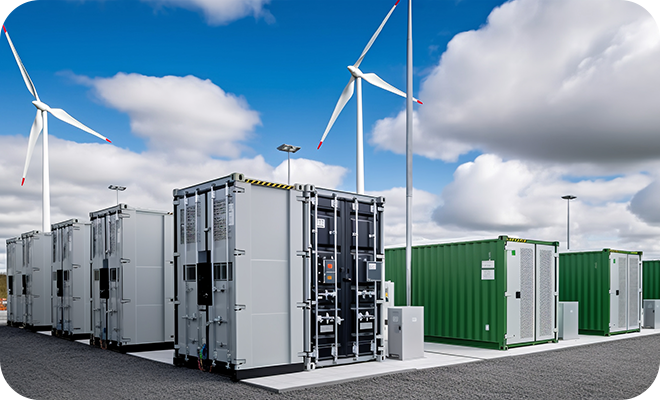

: Energy storage
When the photovoltaic power generation exceeds the load demand, excess electricity is stored in the energy storage system; When the photovoltaic power generation is insufficient, the energy storage system releases electrical energy.

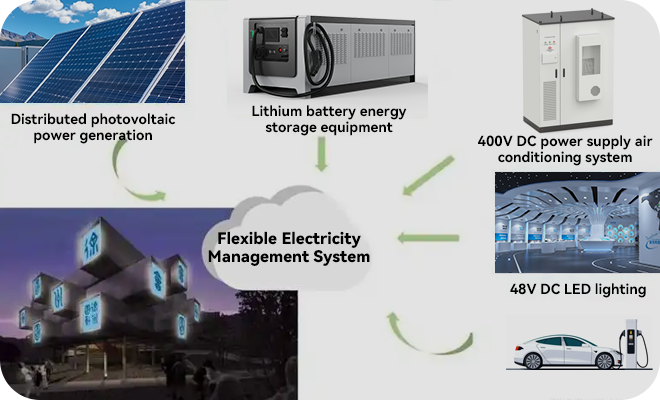

: Energy distribution
The DC distribution system distributes electrical energy directly to DC loads, reducing losses in AC/DC conversion. For AC loads, DC power is converted to AC power through an inverter.

: Flexible electricity usage
By using an energy management system (EMS), equipment power can be dynamically adjusted based on grid conditions and load demands to achieve flexible electricity usage.

Parameter

Tech parameters
Model	TB-PEDF-Power cabinet	TB-PEDF-Photovoltaic cabinet	TB-PEDF-Energy storage/load cabinet
Bus side(high voltage side) parameters	380VAC 50Hz 3P4W+PE	750VDC	750VDC
DC side(low voltage side) parameter	750VDC	200~700VDC	200~700VDC
Module power	50kW	50kW	50kW
Operation mode	Constant power/ voltage	MPPT	Constant voltage/power
Single cabinet size	WDH60010002000mm	WDH60010002000mm	WDH60010002000mm
Maximum power per cabinet	300kW(10 modules)	300kW(10 modules)	300kW(10 modules)
