Product Introduction

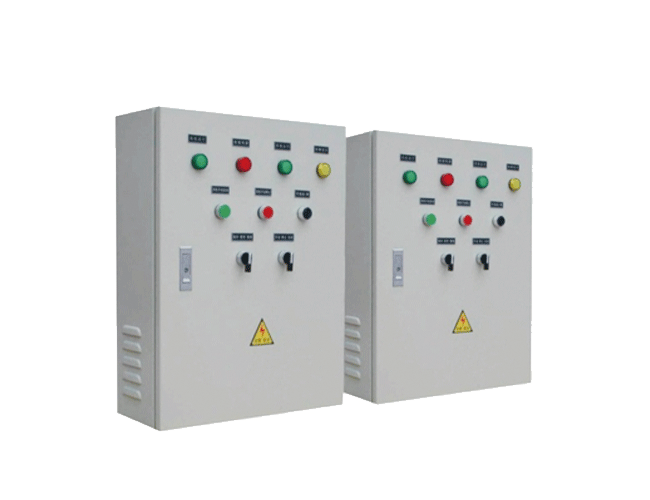

Fan control cabinet is an electrical equipment specifically designed to control the operation of fans, widely used in industries, construction, agriculture, fire protection, and other fields. It integrates advanced control technology, protection functions, and communication interfaces to achieve start stop control, speed regulation, monitoring, protection, and remote management of wind turbines.

Application

: Industrial sector
Used for ventilation systems, air conditioning systems, dust removal systems, etc.

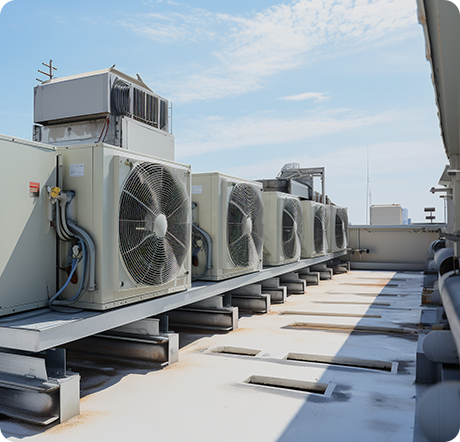

: Construction field
Used for ventilation and smoke exhaust systems in shopping malls, office buildings, and residential buildings.

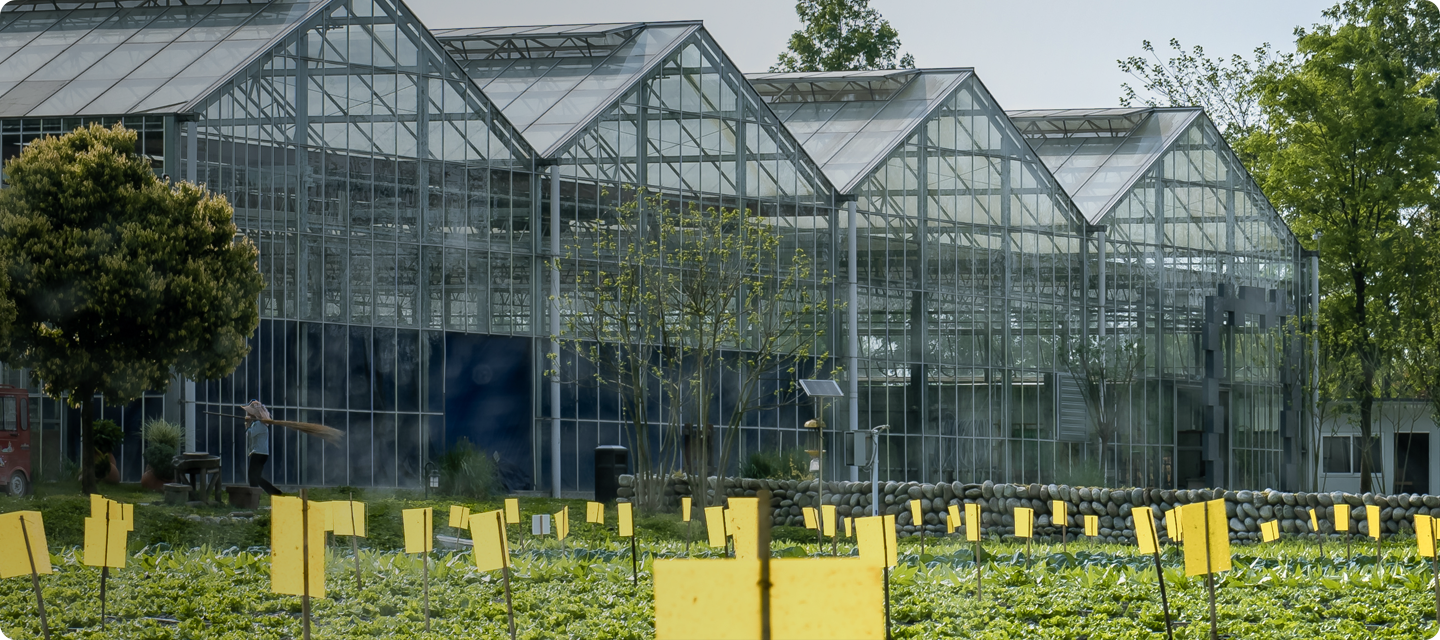

: Agriculture
Used for greenhouse ventilation and environmental control of greenhouse planting.

: Fire protection field
Used for controlling smoke exhaust fans during fires to ensure safe evacuation of personnel.

: Intelligent control
Adopting PLC or microcomputer control technology, supporting multiple control algorithms such as PID control and PWM speed regulation. Equipped with automatic diagnostic function, it can monitor the operation status of the fan in real time and issue fault alarms.

: Modular design
Adopting a modular structure for easy installation, debugging, and maintenance.

: Energy saving operation
By using frequency conversion speed regulation technology, the fan speed can be adjusted according to actual needs to reduce energy consumption.

Parameter

Item		Technical parameter
Total input power supply		AC380V
Internal power supply for PC section		AC120V-240V
Frequency		50/60Hz
Current		30A
Output voltage		AC380V、AC220V
Work environment	Humidity	The humidity of the machine should be below 95% and there should be no frost
	Temperature	-20℃~45℃
	Environment condition	No conductive or explosive dust, no corrosive metals or destructive insulating gases, well ventilated
	Altitude	≤ 25000, exceeding it will reduce power
Load		Suitable for various fan loads
Opening method		Front single door opening
Entry and exit methods		Down in/down out, up in/up out
Protection level		Standard IP30 (customizable upon request)
Installation method		Wall mounted
Dimensions (width * depth * height mm)		600 * 200 * 1000, customizable size, the above dimensions are for reference only
The control object can be expanded to multiple channels as needed, including dual power supply+single speed, dual power supply+dual speed.
