• Compact structure: smaller space accommodates more functional units Strong universality of components and flexible assembly.
• Adopting standard module design: There are five size series standard units, and users can choose and assemble them according to their need .
• High technical performance: The rated short-time withstand current of the MCC cabinet's vertical busbar is 80kA, and the horizontal busbar adopts a counter mounted layout, which can withstand a peak withstand current of 176kA, reaching the contemporary international level..
• The separation between functional units and compartments is clear, reliable, and does not affect the operation of other units due to the failure of one unit, so that the local fault is minimized.

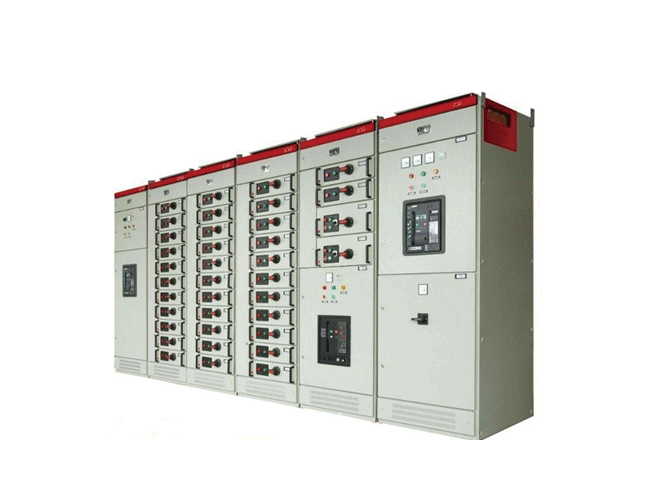

GCS type low-voltage withdrawable switchgear is a complete set of equipment used for energy distribution, control, and protection in power systems, widely used in power plants, substations, industrial and mining enterprises, high-rise buildings, commercial centers, and other places. It is suitable for distribution systems with AC 50Hz or 60Hz, rated working voltage of 660V and below, and rated current of 6300A and below, mainly used for energy distribution, control, and protection.
.png)
Used for the distribution and control of electrical energy, meeting the functions of power receiving, feeding, reactive power compensation, etc. in the power system.
.png)
Used for centralized control of electric motors, realizing the start, stop, protection, and monitoring of electric motors.
Suitable for lighting distribution systems in commercial centers, high-rise buildings, and other places.
High breaking capacity, good dynamic and thermal stability, and high protection level.
The cabinet structure is compact, with high mechanical strength and strong impact resistance.
Modular design, flexible installation, and can be combined freely.
The drawer unit design is compact and can achieve high-density layout.
The drawer and switch are equipped with mechanical interlocking devices to ensure safe operation.
The cabinet adopts an isolated design to prevent the spread of accidents.
The drawer unit design is easy to maintain and replace.
The cabinet adopts an assembled structure, which is convenient for on-site installation and maintenance.
|
Item |
Unit |
Technical parameters |
||
|
Rated insulation voltage |
V |
AC |
690（1000） |
|
|
Rated working voltage
|
Main circuit and auxiliary circuit
|
V |
AC |
400（690） |
|
V |
AC |
380、220 |
||
|
V |
DC |
220、110 |
||
|
Rated pulse withstand voltage |
Kv |
8 |
|
|
|
Overvoltage level |
|
III |
|
|
|
Pollution class |
|
3 |
|
|
|
Rated frequency |
Hz |
50(60) |
|
|
|
Rated current of horizontal busbar |
A |
Ie<5000 |
|
|
|
Rated current of vertical busbar |
A |
1000 |
|
|
|
Rated peak withstand current (0.1s) |
KA |
Vertical 105 |
horizontal 176 |
|
|
Rated short-time withstand current (1s) |
KA |
Vertical 80 |
horizontal 100 |
|
