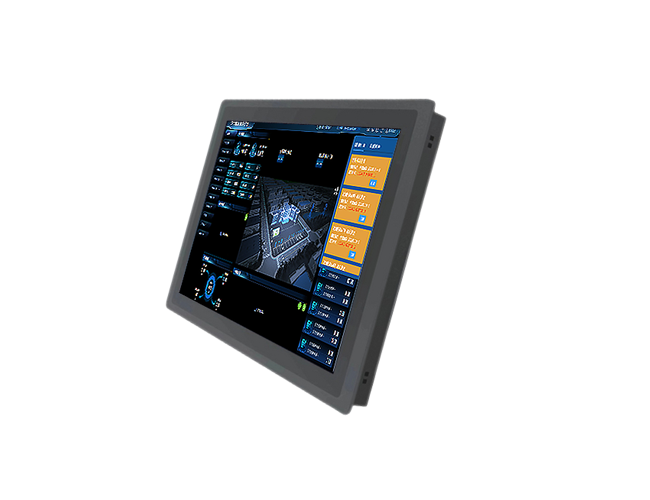

Integrated Controller

• Customized design: EMS integrated controller can be customized according to the specific needs of users to meet the requirements of different application scenarios.

• Data collection and monitoring: With comprehensive data collection and monitoring functions, it can monitor and control specific equipment in the energy storage system in real time, such as the charging and discharging current, voltage, etc. of energy storage batteries.

• Seamless access to the dispatch center system: It can seamlessly connect to the dispatch center system, receive charging and discharging control commands issued by the dispatch center, and perform corresponding operations.

Integrated Controller: Product Introduction Video Showcase Insurance Page Testing and Certification Product Parameters Application Cases

Product Introduction

Integrated controller is a highly integrated intelligent control device widely used in energy storage systems, microgrids, distributed energy and other fields. It integrates multiple functional modules to achieve centralized management and optimized scheduling of energy storage devices, distributed energy, and loads, ensuring efficient operation of the system and rational utilization of energy.

Application

: Energy storage
In energy storage power plants, integrated controllers are used to optimize the charging and discharging strategies of energy storage equipment, improve system efficiency, and reduce operating costs.

: Microgrid and distributed energy
Used for autonomous operation and energy management of microgrids, optimizing the output of distributed energy sources such as photovoltaics and wind energy, and improving system stability.

: Industrial and commercial energy storage
By peak shaving, valley filling, and demand control, we help enterprises reduce electricity costs and improve economic efficiency.

: Electric vehicle charging facilities
Optimize charging strategy, reduce load pressure on the power grid, and improve charging efficiency.

: Highly integrated
The all-in-one controller integrates data acquisition, communication management, edge computing, strategy optimization and other functions in one device, reducing the complexity and cost of the system.

: Powerful data processing capabilities
Support multi-channel real-time data acquisition, compatible with multiple communication protocols (such as Modbus, IEC 60870-5, MQTT, etc.), capable of quickly processing and transmitting data.

: Intelligent Strategy Management
Provide multiple optimization strategies, such as peak shaving and valley filling, anti backflow, demand control, active/reactive power control, etc., and dynamically adjust control strategies based on real-time data.

: System security and operation monitoring
Adopting technologies such as data encryption and user permission management to ensure system data security. At the same time, real-time monitoring of equipment health status, providing fault warning and diagnostic functions.

Parameter

Specifications	10.1 inches
Touch type	10 point capacitive touch
Touch accuracy	≥5mm
Touch method	Finger
Power socket	DC12V power input
OSD language	Multi language OSD operations in both Chinese and English
Installation method	Support embedded or wall mounted
Display scale	16:10
Glass thickness	3mm reinforced explosion-proof glass
Outer frame structure	Aluminum alloy+sheet metal structure
Input power supply	External power supply, DC12V-3A
Input interface	VGA1, HDMI1, DC1,USB1
Installation	Embedded installation
Work environment	Working environment temperature: -20℃~70℃
	Storage environment temperature:-30℃~80℃
	Working environment humidity: 10%~90% RH, relative humidity, non condensing
	Storage environment humidity: 5%~95% RH, relative humidity, non condensing
Warranty	1-year free warranty for the entire machine (excluding human factors)
