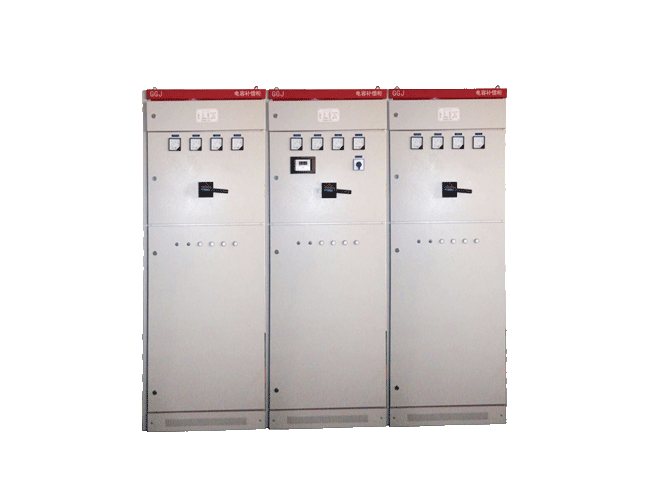

GGJ type low-voltage reactive power compensation cabinet

•Self healing capacitor

•Modular design

•Thermal Design

•Ground protection

•Communication interface

Product Introduction

The GGJ type low-voltage reactive power compensation cabinet is a reactive power compensation device specifically designed for low-voltage power grids, mainly used to improve power factor, reduce reactive power losses, improve grid voltage quality, and reduce line losses. This device is widely used in substations, factories, industrial and mining enterprises, large power plants, chemical enterprises, high-rise building power centers and other occasions.

Application

: Industrial sector
Factories, industrial and mining enterprises, large steel mills, etc.

: Commercial buildings
High rise buildings, shopping centers, office buildings, etc.

: Public facilities
Street lighting, substation, rural power grid renovation, etc.

: Energy system
Petroleum, chemical, power plants, etc.

: Self healing capacitor
Adopting efficient and reliable self-healing metalized parallel capacitors, with small size, light weight, and large capacity.

: Modular design
Easy installation, convenient maintenance, and long service life.

: Thermal Design
The cabinet is equipped with a cooling fan to ensure stable operation of the equipment in high temperature environments.

: Communication interface
Supports RS232/RS485 communication interface, enabling remote measurement and automation management.

Parameter

Project: ItemTechnical parameter

Parameters

Rated voltage380VAC

Rated insulation voltage660VAC

Rated frequency50Hz or 60Hz

Compensation methodCombining three-phase compensation and single-phase compensation

Compensation capacity60kvar 420kvar

Compensation methodLoop switching, coded switching, fuzzy control automatic switching

Fastest response time≤20ms

Cabinet height2000mm、 2200mm

Width600、800、1000、1200mm

Thickness600、800、1000mm

Protection levelIP30
