Mobile EV Charging Trailer | Mobile ESS Vehicle

Product Introduction

Mobile energy storage vehicles (trailer type) have become an important component of modern energy solutions due to their high mobility, large capacity, intelligent management, and environmental protection and energy conservation advantages. They are widely used in emergency, outdoor, and temporary power scenarios.

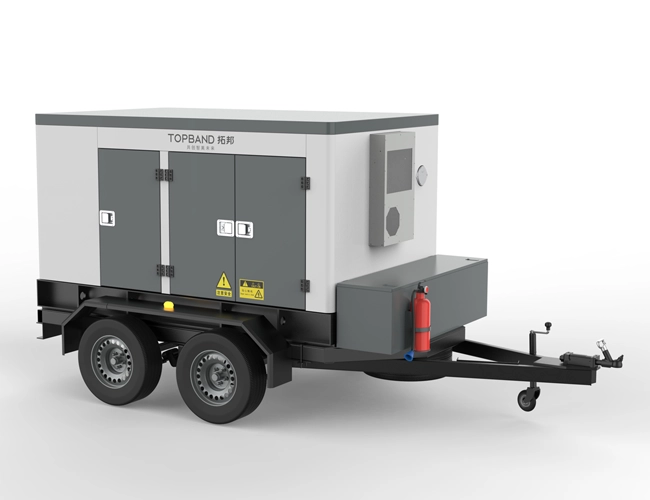

The Topband Mobile EV Charging Trailer is a towable energy storage and charging solution engineered for emergency response, remote construction, and EV fleet support. Built on Topband’s “1 Cell 1 Cloud 3S” architecture (cell, cloud, BMS/PCS/EMS), it uses LiFePO₄ battery modules rated for 4,000+ cycles.

mobile EV charging trailer and mobile ESS vehicle

Application

The mobile EV charging trailer acts as an emergency power backup and EV rapid‑charging solution, a mobile ESS vehicle for temporary construction‑site supply, outdoor‑events support, and grid‑stabilization applications.

: Emergency power supply and power protection

: Uninterrupted operation of the power grid

: Emergency charging for electric vehicles

: Outdoor and temporary construction electricity

: Emergency rescue and disaster relief

: Distributed energy and microgrid

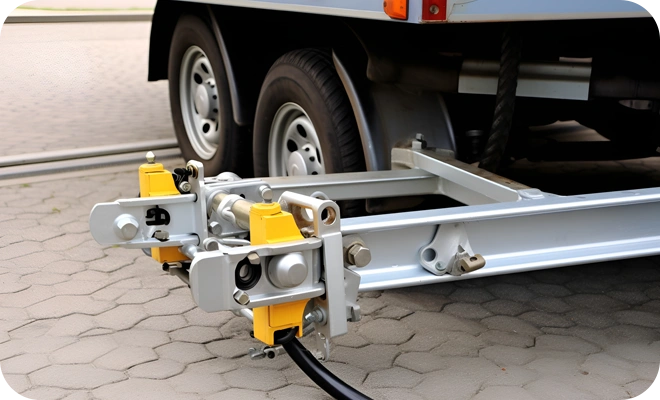

: High mobility

Designed as a mobile EV charging trailer, it can be easily towed by standard vehicles across varied terrains and deployed in minutes. As a versatile mobile ESS vehicle, it excels in remote areas, disaster sites, and any scenario beyond the reach of fixed power grids.

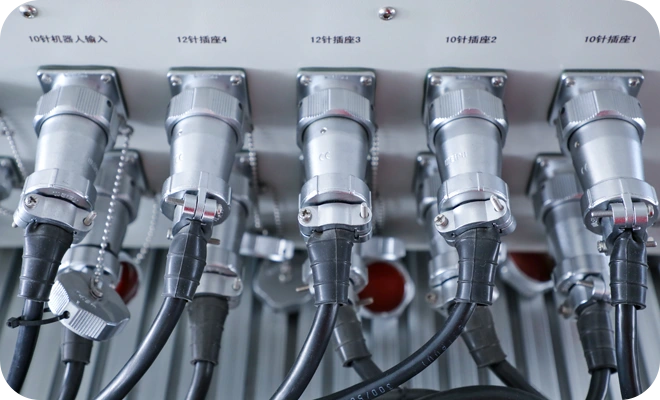

: Multi output interface

Equipped with an intelligent monitoring system that supports local data collection, remote operation and maintenance, and OTA upgrades.
Support big data operation and maintenance, power grid dispatch and control, and remote monitoring.

: Intelligent management

Advanced intelligent management on the mobile EV charging trailer and mobile ESS vehicle integrates a high‑precision BMS for real‑time monitoring of battery voltage, temperature, and state‑of‑charge—ensuring safe, reliable operation. Cloud‑enabled remote monitoring and OTA firmware updates streamline control and maximize fleet management efficiency.

: Safe and reliable

The mobile EV charging trailer and mobile ESS vehicle employ multi‑layer protection—overcharge, over‑discharge, short‑circuit, over‑temperature, and leakage safeguards—to guarantee user and equipment safety. Housed in an industrial‑grade, IP54‑rated shell with shock‑resistance, waterproof, and dustproof features, it thrives in the harshest field conditions.

Parameter

Model	C60G69115-T-69Kwh	C60G69115-T-161Kwh	C60G69115-T-200Kwh
DC side
Nominal capacity	69.12Kwh	161Kwh	200Kwh
Number of cycles	4000
Battery voltage range	360-525V
Maximum input current	60A	315A	388A
Output side
Rated output power	30Kw	80Kw	100Kw
Maximum output power	38Kw	90Kw	110Kw
Type of output	Three phase four wire
Rated voltage	220V/380V
Rated output current	45A	143A	178A
Maximum output current	57A	160A	196A
Isolation method	Optional selection
Grid connected operation
Allowable range of grid volta	340-440V
Grid frequency	45-55Hz
THDI	≤3％
Power factor	-1~+1
Off grid operation
Rated voltage	400VAC
Voltage range	340-440V
Rated output frequency	50Hz
Capable of carrying unbalanced loads	100%
THDU	≤3％
Overload capacity	120% 1 minute
Other parameters
Design lifespan	10 years
Cooling	Air cooling
Relative humidity	5-95%
Protection level
Off grid automatic switching function	10ms
Off grid switching time	10ms
Communication interface	RS485/CAN/ETHernet
Cloud platform terminal	Alibaba Cloud
Vehicle parameters
Vehicle size	5100x2300x2100mm	6000x2300x2100mm	7000x2300x2100mm
Vehicle weight	2.5T	3.5T	4.5T
Top speed	80Km/h
Hydraulic support system	Yes
Sound insulation layer	Yes
Cable and cable winding machine	Optional selection

: Mobile energy storage charging station - Portable Energy Storage Station
~~Learn More~~

: 200KWh Premium Mobile EV Charging Station – Portable EV Charging
~~Learn More~~

: Mobile Charging Robot – Automatic EV Charging
~~Learn More~~

How to choose a supplier for mobile power supplies on construction sites.
On construction sites, mobile power sources are an important guarantee for ensuring the continuous operation of construction equipment and tools. Choosing a suitable supplier requires consideration from multiple dimensions:
2025-07-07~~Learn More~~

In which scenarios is mobile energy storage used.
Introduction: With the popularization and development of renewable energy, mobile energy storage technology has become an indispensable part of modern power systems.
2025-07-04~~Learn More~~

Mobile charging stations eliminate traditional charging stations.
Mobile charging stations are flexible and mobile charging devices that can provide charging services for electric vehicles in different locations, gradually changing the charging landscape of cities.
2025-07-02~~Learn More~~

QWhy choose Topband’s Mobile EV Charging Trailer?: ATopband leads with its “1 Cell 1 Cloud 3S” framework, global R&D, industrial‑grade design, and comprehensive new energy product matrix—ensuring unmatched performance and support.

QWhat is the expected lifecycle of the Mobile EV Charging Trailer’s battery?: AThe LiFePO₄ battery modules deliver over 4,000 cycles, translating to a 10+ year service life under normal use.

QDoes the trailer support portable energy storage for tools?: AYes—its multi‑interface outputs power electric tools, lighting, welders, and other 220 V equipment on-site.

QIs there remote monitoring for the portable energy storage system?: AYes—built‑in 4G/GPS and Topband’s cloud EMS platform enable real‑time remote monitoring, diagnostics, and OTA firmware updates.

QCan multiple Mobile ESS Vehicles be paralleled?: AYes—parallel connection of multiple Mobile ESS Vehicles scales capacity and power output for larger EV fleet charging or extended power backup.

QHow fast can the portable energy storage trailer recharge?: AThrough DC fast charging, the trailer can reach 80% state‑of‑charge in under 1 hour and full charge within 1.5 hours.

QHow does the Mobile ESS Vehicle integrate with solar power?: AThe Mobile ESS Vehicle supports solar PV input via MPPT, allowing the trailer’s battery packs to recharge using sunlight for a hybrid, green charging solution.
