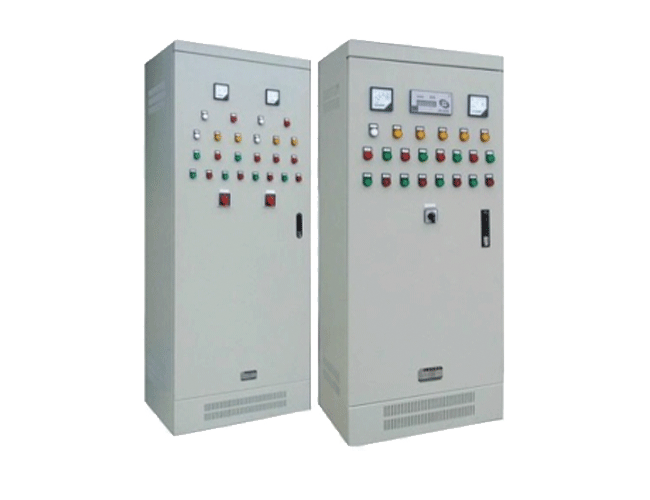

Pump control cabinet

• Control of factories, mines, industrial and domestic water supply, fire protection, sewage, etc.

• Circulating control of air conditioning cooling water in buildings, shopping malls, etc.

• Hot water control in hotels, bathrooms, etc.

• Automatic water supply control of urban square music fountain.

Product Introduction

Water pump control cabinet is an electrical equipment used to control the operation of water pumps, widely used in various scenarios such as municipal water supply, industrial cooling, fire stabilization, constant temperature circulation, drainage and sewage. It integrates advanced control technology, protection functions, and communication interfaces to achieve start stop control, speed regulation, monitoring, protection, and remote management of water pumps.

Application

: Municipal water supply system
Realize automatic adjustment of water tank level through liquid level control.

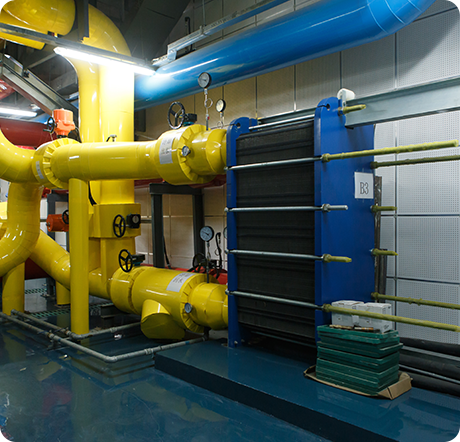

: Industrial cooling cycle
Automatically adjust the operation of the water pump according to changes in pipeline pressure to ensure cooling effectiveness.

: Fire stabilization system
Maintain stable pressure in the pipeline network to meet the demand for firefighting water.

: Constant temperature heat exchange system
Automatically adjust the start and stop of the water pump according to the set temperature.

: Drainage and sewage system
Automatically control the start and stop of the water pump based on the liquid level.

: Intelligent monitoring and control
Real time monitoring of the operating status of the water pump, including parameters such as current, voltage, water level, pressure, temperature, etc. Supports multiple control modes such as liquid level control, pressure control, temperature control, and time control. The operation status of the water pump can be automatically adjusted according to the preset program to achieve the best matching of flow rate and head.

: Energy saving optimization
By adopting frequency conversion speed regulation technology, the motor speed can be dynamically adjusted according to actual needs to reduce energy consumption. Utilize advanced algorithms to optimize the operating parameters of water pumps and achieve maximum energy efficiency.

: Remote monitoring and maintenance
Support remote monitoring and control through IoT technology, users can view real-time water pump operation data through computers or mobile phones. Provide remote diagnosis and fault alarm functions to reduce on-site maintenance work.

: Protection function
Built in overload, short circuit, phase loss, motor overheating, leakage and other protection mechanisms ensure the safe operation of the equipment. Automatically shut down and send alarm messages in abnormal situations.

Parameter

Item	Technical parameter
Directly start the control cabinet	Control motor power: 0.37-15KW
	Control voltage: 380V
	Control the number of water pumps: 1-4
Star triangle voltage reduction start control cabinet	Control motor power: 15-160KW
	Control voltage: 380V
	Control the number of water pumps: 1-5
Self coupling voltage reduction starting control cabinet	Control motor power: 15-160KW
	Control voltage: 380V
	Control the number of water pumps: 1-5
Soft start, variable frequency speed control cabinet	Control motor power: 0.18-250KW
	Control voltage: 380V
	Number of control motors: 1-7
	Pressure control accuracy: 0.02MPa or -0.02MPa
