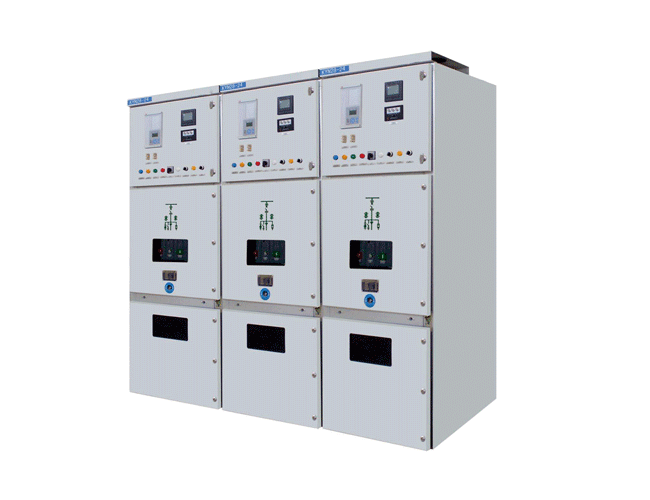

KYN28-24 Metal Armored Removable Switch Cabinet

•Compact cabinet structure

•Five prevention functions

•Multiple handcart configurations

•Reliable insulation performance

•Safe and reliable interlocking device

•Flexible installation

Product Introduction

KYN28-24 metal armored withdrawable switchgear is a high-voltage switchgear suitable for indoor three-phase 50/60Hz, rated voltage 24kV power systems. It is mainly used in power plants, substations, industrial and mining enterprises, and high-rise buildings to receive and distribute electrical energy, and to control, protect, and monitor circuits.

Application

: Ferrous metallurgy

: Mineral development

: Power system

: EPC general contractor

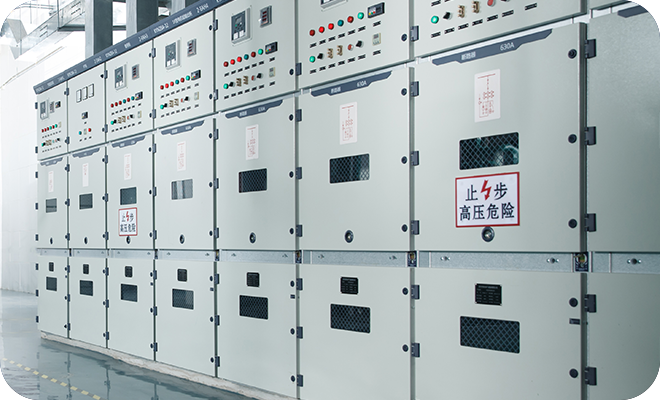

: Compact cabinet structure
Adopting an assembled structure, the components have strong universality, occupy a small area, and are easy to produce and install.

: Five prevention functions
It has the function of preventing misoperation, including preventing the handcart from moving with load, preventing the circuit breaker from closing when the grounding switch is closed, preventing the grounding switch from closing when it is live, and preventing accidental entry into the live compartment.

: Multiple handcart configurations
Multiple types of circuit breaker handcart, voltage transformer handcart, lightning arrester handcart, isolation handcart, etc. can be configured, with good interchangeability and flexible operation.

: Reliable insulation performance
The main circuit adopts composite insulation, and the busbar adopts heat shrinkable insulation material or epoxy coating to optimize the electrode shape and ensure insulation performance.

Parameter

Item		Unit	Technical parameter
Rated voltage		KV	24
Rated insulation level	Lightning impulse withstand voltage (full wave)		(Phase to phase, relative to ground) 125, (fracture) 145
Rated insulation level	1mim power frequency withstand voltage		(Phase to phase, relative to ground) 65, (fracture) 79
Rated current	A	630、1250	2000、3150
Rated short-circuit breaking current	KA	25、31.5、63、80	31.5
Rated short-circuit closing current (peak)		63	80
Rated peak withstand current (peak)		63	80
Rated short-time withstand current/4S		25	31.5
Rated operating sequence			0-0.3s-C0-180s-C0
Rated short-circuit current breaking times		tim	20
Mechanical lifespan of vacuum circuit breaker		time	≥10000
Mechanical lifespan of isolation and grounding switches		time	2000
Rated operating voltage of opening and closing coils		V	DC220/110V、AC220/110V
Rated operating voltage of energy storage motor		V	DC220/110
Energy storage time		S	≤15
Protection level			IP4X
Busbar system			Single busbar, segmented single busbar
Dimensions (width * length * height)		mm	100018702400
Weight		kg	About 1240
