•Intelligent functions
•High reliability
•Flexible configuration
•Communication and data management

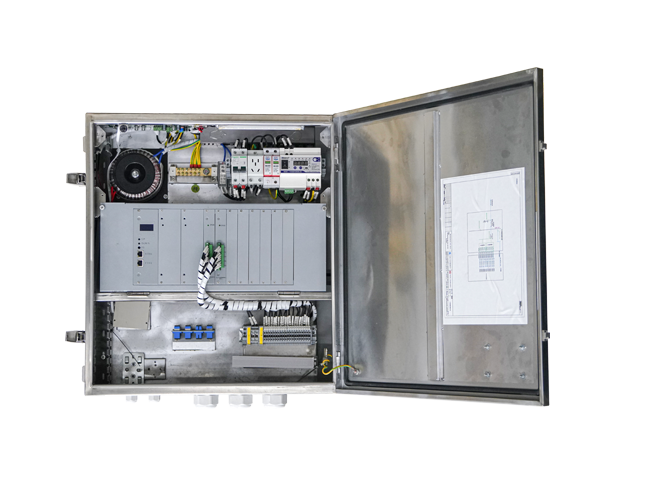

Intelligent distribution box is an intelligent power equipment that integrates modern information technology, communication technology, sensor technology, and control technology. It is widely used in residential, commercial buildings, industrial fields, smart cities, new energy, and data centers. Compared with traditional distribution boxes, intelligent distribution boxes have functions such as remote monitoring, real-time data acquisition, automatic control, fault diagnosis, and energy management, which can significantly improve the reliability and operational efficiency of power systems.
Provide convenient power management and support smart home systems.
Optimize energy management and reduce operating costs.
Ensure the stable operation of the production line and reduce unexpected power outages.
Support the construction of smart grids and achieve efficient management of power resources.
Manage and dispatch renewable energy sources such as solar and wind power.
Provide reliable power supply to ensure data security.
By optimizing electricity usage patterns, energy conservation and emission reduction can be achieved.
Modular design, easy to install, maintain, and upgrade.
Real time data collection and analysis provide a basis for optimizing the power system.
Equipped with multiple protection functions to ensure the safety of equipment and personnel.
|
Category |
Item |
Technical parameter |
|
Cabinet parameters |
Box material |
Hot dip galvanized sheet (preferred), 201/304 stainless steel (optional) |
|
Material thickness |
1.2mm / 1.5mm / 2.0mm |
|
|
Surface treatment |
Degreasing, acid washing, phosphating, powder coating |
|
|
Box color |
Customer choice |
|
|
IP |
IP55 |
|
|
Box grounding |
All devices on the top cover, box, and waterproof cap of the box are connected and conductive, forming a complete electromagnetic shielding shell |
|
|
Waterproof box |
The box adopts a double slope independent rain cap, which can drain condensed water from the top of the box to ensure equipment safety |
|
|
Power characteristics |
Voltage input range |
AC100V~285V (wide input voltage) or AC165V~265V (conventional) |
|
Power supply |
2000W (regular)/3500W/7000W/13000W |
|
|
Mechanical properties |
External dimensions |
Height * Width * Thickness=530mm x 380mm x 220mm (regular) |
|
Packaging size |
Height * Width * Thickness=630mmx490mmx330mm |
|
|
Working temperature |
Minus 40 ℃~+85 ℃ |
|
|
Storage temperature |
Minus 45 ℃ to+90 ℃ |
|
|
Relative humidity |
5%~95% non condensing |
