• Flexible expansion for your energy storage needs; easy operation and maintenance of each battery storage cabinet module.
• Supports 100% unbalanced load and 110% long-term overload.
• Compact energy storage battery cabinet footprint: only 1.47 m² per unit, delivering 177.72 kWh/m² and reducing overall system footprint by over 26%.
• Adjustable output power, adjustable charging and discharging power, strong adaptability to the power grid.
• Only 1.47m ², with an energy density of 177.72kWh/m ² per unit area, resulting in a reduction of over 26% in system footprint.
• Top mounted liquid cooling unit, front maintenance, supports wall mounted installation, flexible deployment.

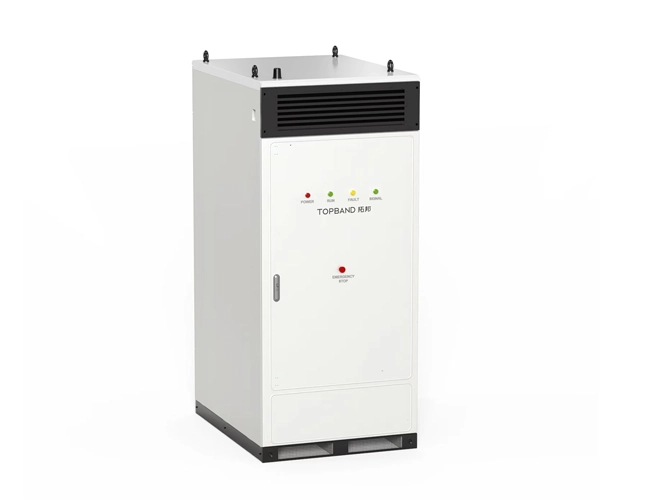

Our 261° Electric Energy Storage Battery Cabinet is a highly integrated liquid‑cooled energy storage cabinet system, ideal for both indoor and outdoor installations. Combining the battery system, BMS, EMS, PCS, and advanced fire protection into a single battery energy storage cabinet, it streamlines deployment in industrial and commercial energy storage, microgrids, distributed energy setups, and virtual power plants.
In industrial and commercial parks, the energy storage battery cabinet can integrate seamlessly with solar and wind power systems to enable microgrid autonomy and peak shaving; in data centers and telecommunications sites, it serves as a reliable backup power source, delivering instant-response electricity to critical equipment; in hospitals, schools, and other public facilities, the battery energy storage cabinet ensures uninterrupted power during outages, enhancing operational safety; and within virtual power plants and smart grids, the modular energy storage cabinet can be centrally dispatched and traded via cloud platforms, facilitating flexible energy management and cost optimization.
Used for peak shaving and valley filling, demand management, dynamic expansion, and reducing electricity costs.
As a backup power source, it supports off grid and grid connected operation, ensuring stable power supply for important loads.
Combining with renewable energy sources such as solar and wind power to achieve energy storage and optimized utilization.
Supports virtual power plant operation mode and participates in power grid scheduling.
This energy storage cabinet offers peak shaving, valley filling, voltage regulation, three‑phase imbalance correction, and harmonic mitigation. The energy storage battery cabinet supports multiple operating modes—scheduled charge/discharge, self‑consumption, backup power, and AI‑driven smart mode—to maximize system efficiency and ROI.

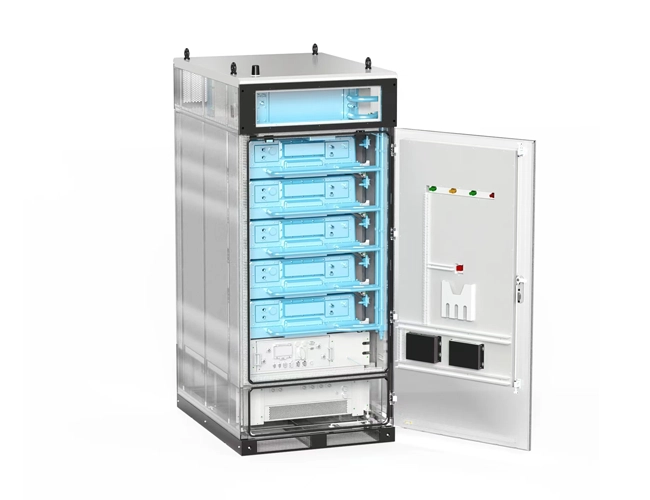

Featuring a fully integrated energy storage battery cabinet, this system houses the 314 Ah LFP battery cells (261 kWh), BMS, EMS, PCS, and multi‑tier fire protection (battery‑, pack‑, and system‑level). Modular architecture supports up to 32 cabinets in parallel for scalable battery storage cabinet solutions across varying project sizes.
Adopting 314Ah lithium iron phosphate battery, the system capacity reaches 261kWh and the cycle life can reach 6000 times. Equipped with three-level fire protection design (battery level, pack level, system level), supporting multiple detectors such as smoke detectors, temperature detectors, and water immersion detectors to ensure safe system operation.
With a footprint of just 1.35–1.47 m² per battery energy storage cabinet, wall‑mount options, and IP54/IP55 ratings, it’s suitable for factories, parks, and commercial buildings. Operating range from –30 ℃ to +50 ℃ (derating above 45 ℃) and up to 3,000 m altitude makes this energy storage battery cabinet versatile in varied climates.
Product ModelTB-YL-261.25KWh-125K
Battery typeLFP314Ah
System battery configuration1P260S
DC side battery capacity@ BOL261.25kWh
Battery voltage range806.4V~1036.8V
Maximum charge discharge rate0.5C
Rated output power
125kW
Total current waveform distortion rate<3%(rated power)
DC component<0.5%(rated power)
Grid voltage380V±15%
Grid frequency50Hz±5Hz
Cabinet size (W*H*D)1050*2400*1400mm
Entry methodThree phase four wire
Grid/Off-gridSupport
Weight≈2.8T
Maximum cycle efficiency91%
Protection levelIP54
Consolidation cabinetSupports up to 8 parallel cabinets
Anti corrosion gradeC4 (C5 optional)
Working temperature-30~+50 ℃ (derating at>45 ℃)
Working humidity0-95% (no condensation)
Maximum working altitude3000m
Cooling Liquid cooled (water+ethylene glycol)
Fire protection configurationS-type aerosol/heptafluoropropane/perfluorohexane
Communication interface Ethernet
System communication protocol authenticationModbus-TCP/GB/T 36276、GB/T 34131、UL 1973、UL 9540A、IEC 62619、UN 38.3
System communication interfaceEthernet
