Energy Storage Cabinet

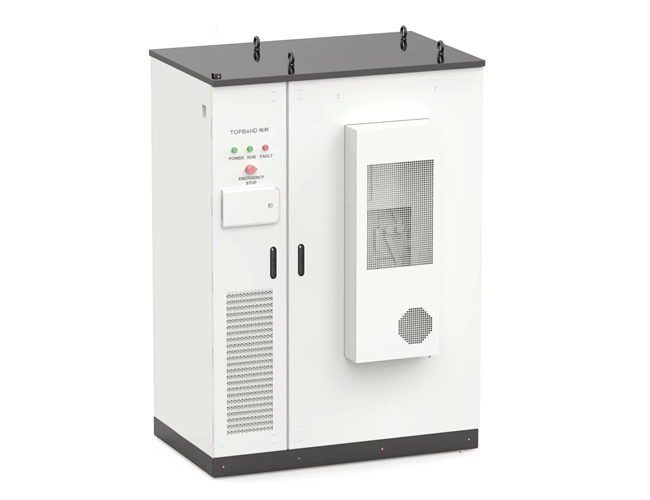

215 kWh Energy Storage Cabinet

• All in One modular design, flexible expansion,Advanced Battery Energy Storage System (BESS)， easy operation and maintenance.

• Supports 100% unbalanced load and 110% long-term overload. Industrial‑grade Energy Storage System (ESS) performance ensures reliable output under uneven phase loading and sustained peak demand.

• Ultra high energy density, small size, easy installation and transportation Adjustable output power, adjustable charging and discharging power, strong adaptability to the power grid.

• Highly integrated design of battery, BMS, PCS, and EMS, with a single self-contained system for quick operation.

• Cluster level independent control and management, capable of achieving 100% charging and discharging.

• Core components of the battery system have passed authoritative tests such as GB/T 36276, GB/T 34131, UL9540A, etc.

Product Introduction

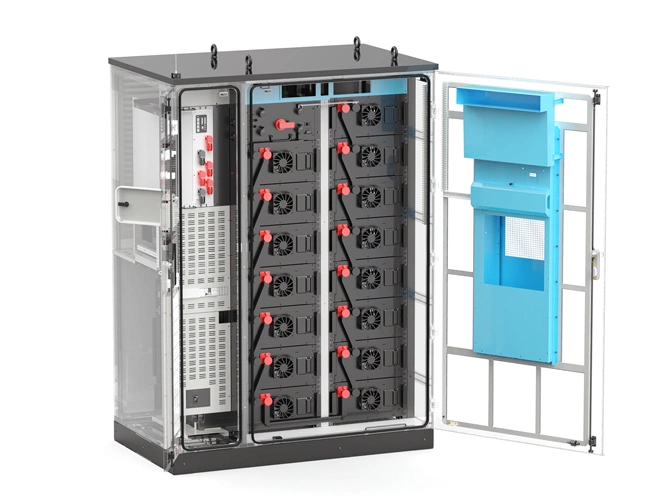

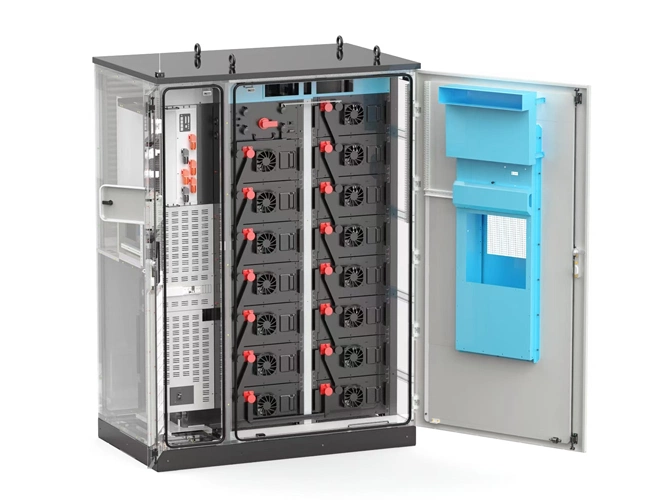

The 215 kWh Energy Storage Cabinet is an Outdoor Cabinet Energy Storage System engineered for industrial & commercial ESS, distributed power stations, EV charging hubs, microgrids, and virtual power plants. Its fully integrated design—combining LiFePO₄ batteries, PCS, EMS, and smart fire‑protection—delivers turnkey performance in both indoor and outdoor deployments.

215 kWh outdoor cabinet energy storage system introduction

Application

The 215 kWh Energy Storage Cabinet integrates seamlessly into industrial & commercial energy storage, distributed power stations, EV charging stations, and microgrids to deliver reliable peak shaving, backup power, and grid‑service optimization.

: Industrial and commercial energy storage
Used for peak shaving, valley filling, reducing electricity costs, and improving electricity quality.

: Distributed power station
Combined with solar and wind energy to achieve renewable energy storage.

: Electric vehicle charging station
Balance the power demand of the charging station and improve charging efficiency.

: Microgrid
As a backup power source, it ensures uninterrupted power supply for important loads.

: Efficient Energy Management
As a complete Energy Storage System (ESS), this Battery Energy Storage Cabinet offers real‑time peak shaving and valley filling, grid voltage regulation, three‑phase imbalance correction, and harmonic mitigation. Multiple operating modes—including scheduled charge/discharge, self‑consumption, backup mode, and AI‑driven smart mode—maximize ROI and support grid dispatch services.

: Intelligent monitoring
and operation and maintenance
Equipped with an Integrated PCS & EMS platform and local/remote intelligent monitoring system, the 215 kWh Energy Storage Cabinet supports big‑data analytics, OTA upgrades, and centralized grid dispatch control. Remote O&M ensures uptime and rapid troubleshooting across your ESS fleet.

: Safe and reliable
Our Battery Energy Storage System incorporates a six‑layer safety architecture with S‑type aerosol and perfluorohexane fire‑suppression, plus active cell‑level protection for early fault detection. Certified to UL 9540A, GB/T 36276, and IEC 62619, it delivers industry‑leading safety for commercial and industrial applications.

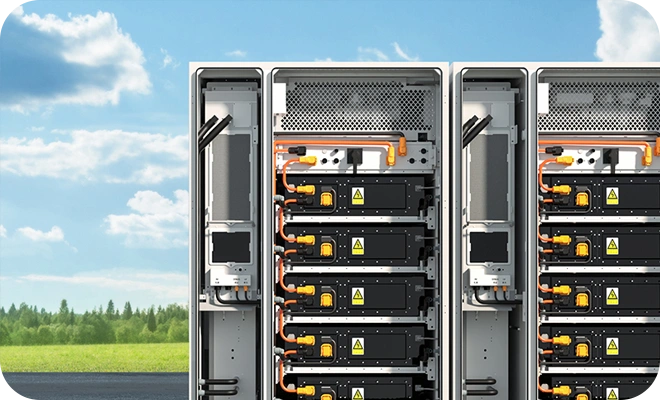

: Flexible expansion and installation
The Modular & Scalable Parallel Expansion architecture lets you add cabinets as demand grows. Plug‑and‑play outdoor floor‑standing installation minimizes commissioning time—simply position, connect to the grid, and activate your Outdoor Cabinet Energy Storage System.

Parameter

Project: Product ModelTB-FL-215KWh-125K

Battery Parameters

Battery typeLFP280Ah

System battery configuration1P240S

DC side battery215kWh

Capacity@BOL

Battery voltage648V~864V

Maximum charge discharge rate＞0.58C

PCS

Rated output power
125kW

Total current waveform distortion rate<3%(rated power)

DC component <0.5%(rated power)

Grid voltage380V±15%

Grid frequency50Hz±5Hz

System parameter

Cabinet size (W*H*D) 1600*2230*1000mm

Cable entry methodThree phase four wire

Grid/Off-gridSupport

Weight≈2.6T

Maximum cycle efficiency88%

Protection levelIP54

Consolidation cabinetSupports up to 8 parallel cabinets

Anti corrosion gradeC4 (C5 optional)

Working temperature-30~+50 ℃ (derating at>45 ℃)

Working humidity0-95% (no condensation)

Maximum working altitude3000m

CoolingIndustrial air conditioning (forced air cooling)

Fire protection configurationS-type aerosol/heptafluoropropane/perfluorohexane/water fire interface (optional)

Communication interface Ethernet

System communication protocol authenticationModbus-TCP/GB/T 36276、GB/T 34131、UL 1973、UL 9540A、IEC 62619、UN 38.3

QWhat fire‑protection and early‑warning features protect this energy storage cabinet?: AThe six‑layer safety design includes S‑type aerosol, perfluorohexane suppression, and cell‑level active protection technology—providing ultra‑early fault detection and automated incident response.

QHow does intelligent monitoring enhance O&M for the outdoor ESS cabinet?: AEquipped with remote/local data collection, OTA upgrades, and big‑data analytics, the intelligent monitoring system enables proactive maintenance, grid dispatch control, and rapid troubleshooting.

QHow adjustable is the power output on the 215 kWh ESS for peak shaving and grid services?: AThe cabinet’s adjustable power output lets you configure charging/discharging rates to optimize peak shaving, valley filling, demand response, and voltage regulation in microgrids or EV charging stations.

QHow does this cabinet support “green, low‑carbon living: ABy enabling high‑efficiency renewable integration, peak‑to‑valley energy shifting, and reliable backup, the 215 kWh Energy Storage Cabinet aligns with low‑carbon goals and sustainable energy strategies.

QWhat applications suit the 215 kWh Energy Storage Cabinet?: AIdeal for industrial & commercial energy storage, distributed power stations, electric vehicle charging stations, microgrids, and virtual power plants requiring reliable backup and grid support.

QHow adjustable is the power output of the ESS cabinet?: AThe cabinet offers fully adjustable charging and discharging power to match grid conditions, support peak shaving, valley filling, and demand‑response services in your microgrid or EV charging station.

QWhat is the energy density and system footprint of this outdoor cabinet?: AWith an ultra‑high energy density of 177.72 kWh/m², the 215 kWh Energy Storage System reduces footprint by over 26 %, enabling compact installations and easier transportation.

QHow does the all‑in‑one modular design benefit my ESS deployment?: AThe modular design of this Energy Storage Cabinet enables flexible expansion, quick plug‑and‑play installation, and simplified O&M, so you can scale capacity by adding more cabinets in parallel.

QWhat is the 215 kWh Energy Storage Cabinet?: AThe 215 kWh Energy Storage Cabinet is an all‑in‑one modular BESS (Battery Energy Storage System) that integrates LiFePO₄ batteries, BMS, PCS, EMS, and fire‑protection in a single outdoor cabinet for industrial and commercial ESS applications.
