PXD type AC distribution box

•Compact structure

•Multiple installation

•High protection level

•Flexible configuration

•Easy operation

PXD type AC distribution box: Product Introduction Video Showcase Insurance Page Testing and Certification Product Parameters Application Cases

Product Introduction

PXD AC distribution box is a type of distribution equipment used in power systems with AC 50Hz and rated voltage of 380V or below, widely used in industrial, commercial, civil construction and other fields. It is mainly used for the distribution, control, and protection of electrical energy, and can achieve functions such as overload, short circuit, and leakage protection.

Application

: Industrial premises
Used for power distribution and protection in production lines, automation control systems, and large mechanical equipment.

: Civil architecture
Suitable for lighting and small power lines in hotels, schools, hospitals, residential areas, and other places.

: Commercial facilities
Electricity distribution in places such as shopping malls, stations, ports, etc.

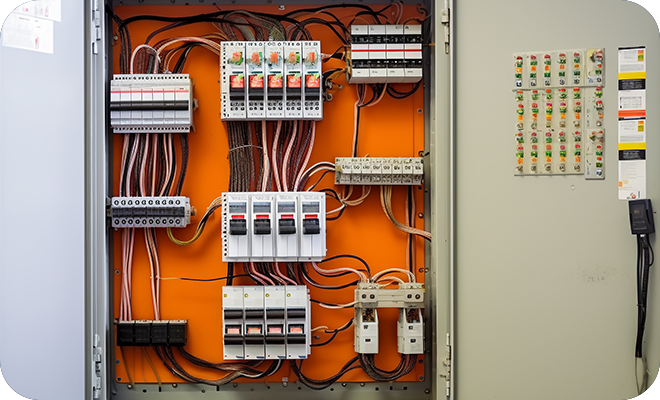

: Compact structure
The PXD distribution box has a small volume, making it easy to install and manage.

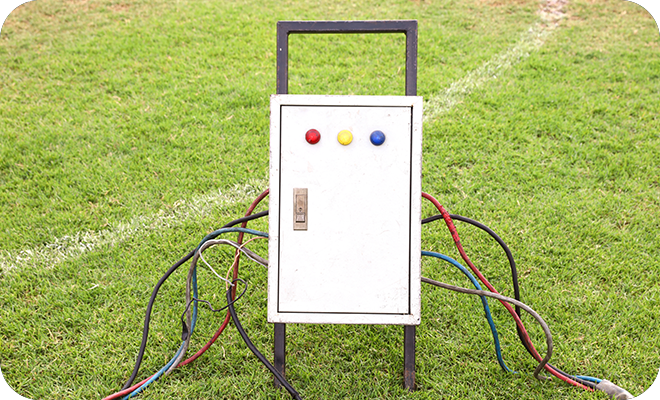

: Multiple installation
Supports multiple installation methods such as embedded and wall mounted, adapting to different application scenarios.

: High protection level
The enclosure protection level can reach IP40 or higher, ensuring the reliability of the equipment in harsh environments.

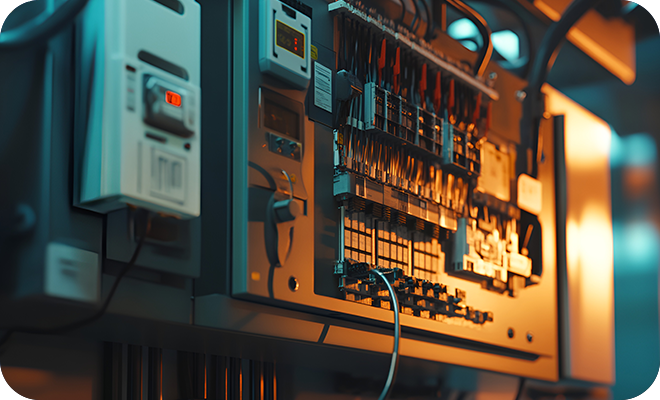

: Flexible configuration
Different specifications of circuit breakers, isolating switches, measuring devices, and other components can be configured according to user needs.

Parameter

Item	Unit	Technical parameter
Execution standards		GB7251.1-2005
Rated insulation voltage	V	690V
Rated working voltage	V	400V
Rated current	A	6300-1000A
Short time withstand current capability	KA	20KA
IP	A	IP30/IP55/IP65
Working temperature	°C	Minus 20 degrees to 40 degrees
Installation method		Ground
Box material	mm	1.5-2.0 Cold rolled steel plate and stainless steel plate
Surface treatment		Precision electric spraying technology
Opening direction of the box		Opening angle>135 °
