ZGS11-120.4 American Box Transformer

•Fully sealed and insulated design

•Compact structure and small volume

•Low loss, low noise

•High reliability

•Multiple power supply methods

•Intelligent design

Product Introduction

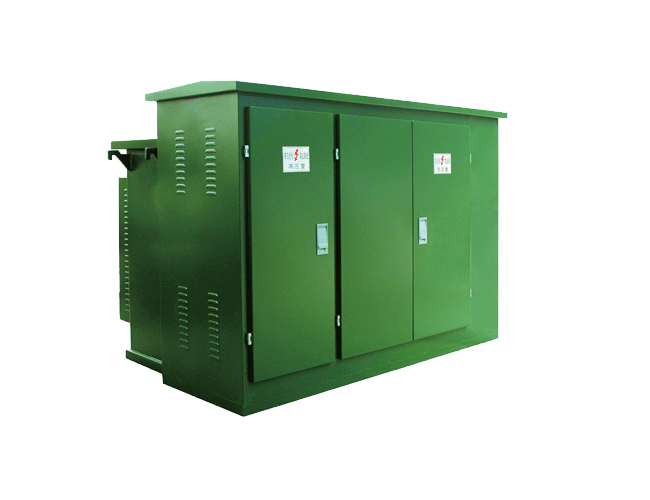

ZGS11-12/0.4 type American box transformer is a prefabricated substation equipment, which designs the transformer body, high-voltage load switch, protective fuse and other equipment uniformly and places them in the same sealed oil tank. This device is suitable for 12kV ring network power supply, dual power supply or terminal power supply systems, and is widely used in urban and rural distribution networks, urban residential areas, commercial centers, airports, stations, schools, hospitals and other places.

Application

: Urban high-rise buildings, residential communities, and commercial centers.

: Industrial parks, schools, hospitals, airports, and train stations.

: Temporary construction electricity and rural power grid renovation.

: Fully sealed and insulated design
The equipment adopts a fully sealed structure, without the need for insulation distance, ensuring personal safety.

: Compact structure and small volume
The volume is only 1/3 to 1/5 of the same capacity European box transformer, with a small footprint and easy installation and maintenance.

: Low loss, low noise
Adopting transformers with low loss, low temperature rise, and low noise, fully sealed and maintenance free.

: High reliability
Equipped with comprehensive protection functions such as oil temperature gauge, oil level gauge, pressure relief valve, etc., to ensure the safe operation of the equipment.

Parameter

Rated capacity (KVA)	Rated voltage (Kv)		Connecting groups	No load current (10%)	Loss (W)		Impedance voltage (%)	Reference weight (Kg)
Rated capacity (KVA)	High voltage	Low voltage	Connecting groups	No load current (10%)	Empty load	Load	Impedance voltage (%)	Instrument body	Oil weight	Total weight
30	10.0±2x2.5%or±2x2.5%or10.0±2x2.5%	0.4	Yyn0 Dyn11	2.1	80	600	4	170	300	1130
50				2	100	870		200	340	1180
63				1.9	110	1040		230	365	1220
80				1.8	130	1250		265	400	1250
100				1.6	150	1500		325	430	1290
125				1.5	170	1800		376	440	1340
160				1.4	200	2200		450	448	1400
200				1.3	240	2600		520	460	1540
250				1.2	290	3050		622	450	1630
315				1.1	340	3650		746	506	1836
400				1	410	4300		910	610	2165
500				1	480	5150		1032	645	2366
630				0.9	570	6200	4.5	1290	720	2800
800				0.8	700	7500		1550	850	3270
1000				0.7	830	10300		1675	875	3592
