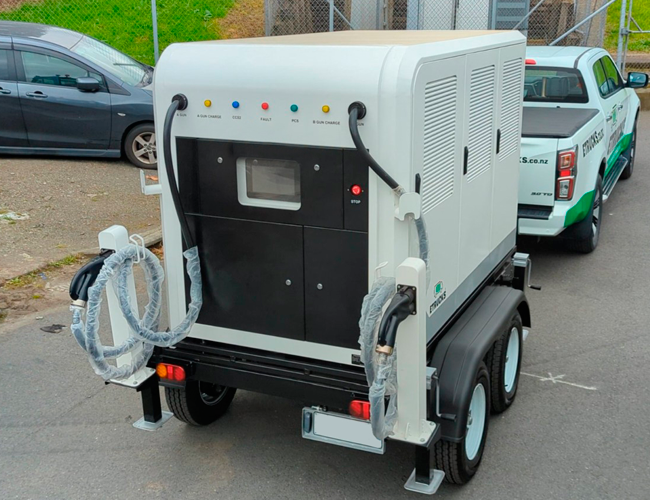

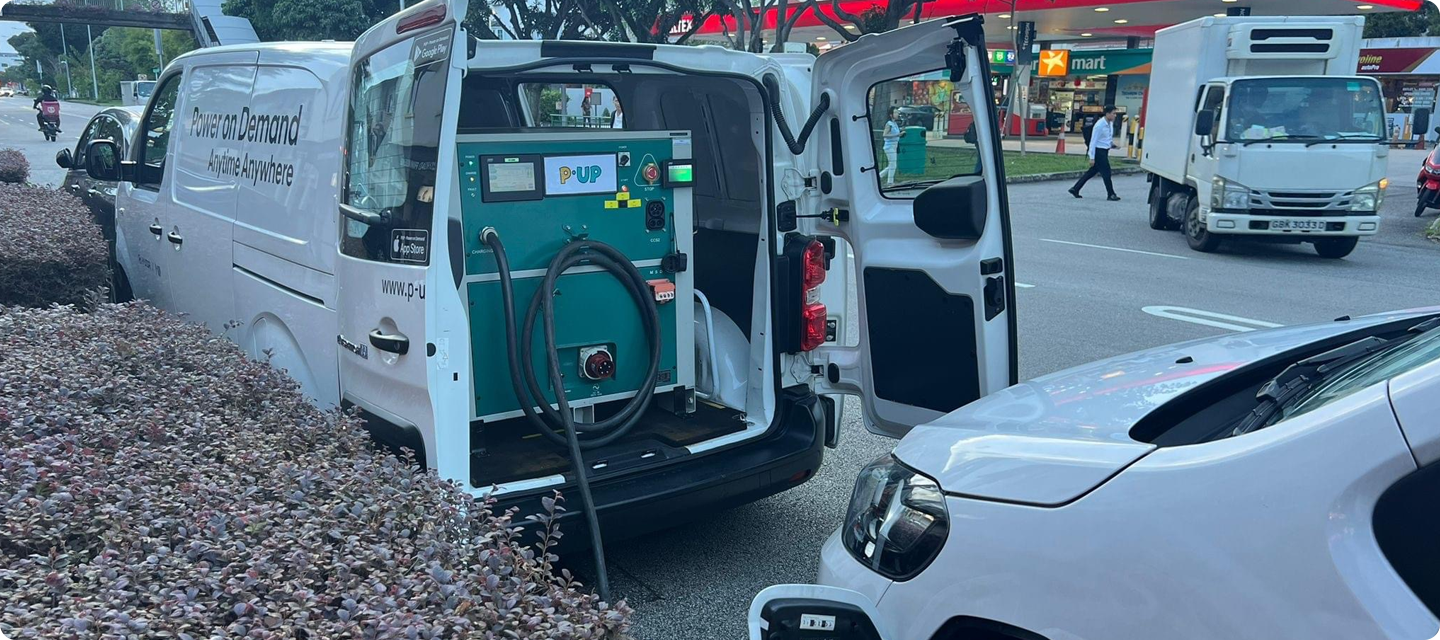

Mobile energy storage charging station -200KWh

• Efficient energy storage and charging.

• Flexible power supply.

• Intelligent management system.

• Safety and protection.

• Strong adaptability.

• Movement controls.

Product Introduction

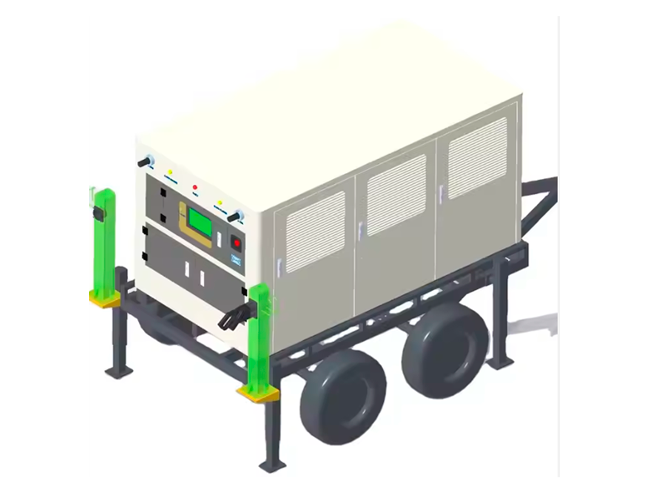

The 200kWh mobile energy storage charging station is a device that integrates energy storage and charging functions, providing flexible and efficient charging services for electric vehicles.

Application

: Emergency rescue charging

: Door to door charging service

: Mobile energy storage charging station

: Public place

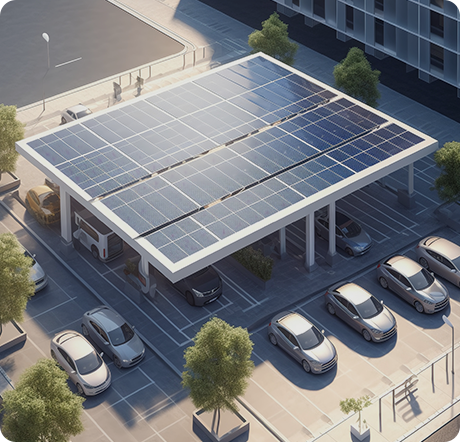

: Residential communities and enterprises

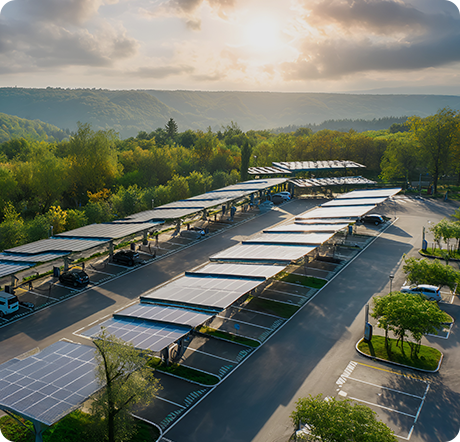

: Tourist attractions and outdoor activities

: Remote areas and areas without electricity

: Efficient energy storage and charging
Using lithium iron phosphate battery cells, safe and stable, with an output power of up to 180kW.

: Flexible power supply
The equipment has various power supply methods, supporting DC power supply (120kW) and AC power supply (40kW).

: Intelligent management system
Equipped with intelligent control function, it can achieve remote monitoring and management, and users can know the charging status at any time through mobile APP or computer.

: Flexible configuration and compatibility
The output voltage range is wide, such as DC200V~1000V, which can adapt to the charging needs of most electric vehicles in the market. Some products also support CCS1/CCS2 charging standards.

Parameter

Model	TBMC-200-180KW
Parameter category	Parameter	Parameter values
Battery system	Type	LFP
	Battery pack voltage	672V / 716.8V
	Single cell capacity	304Ah
	System combination	210SIP
	Cycle life	>5000 time
Charging parameters	Output power	180kW
	Output voltage range	DC200V~1000V
	Output current	0~250A
	Charging gun parameters	Dual gun 90kW, single gun 180kW
	Range of output voltage for charging gun	200V~1000V
	Charging gun interface	CCS1/CCS2
Power supply	DC power supply	120kW
Power supply	AC power supply	40kW
AC output	AC output power	100kW
AC output	AC output voltage	380V
Environmental parameters	Working temperature range	-10℃~60℃
	Storage temperature range	0℃~40℃
	Working environment humidity	<85%
	IP	Overall IP54, energy storage IP67
Others	Size（LWH）	230014501650 mm / 240013501550 mm
	Weight	2600Kg / ≈2680kg
	Thermal management	Liquid cooling
