Energy Storage Cabinet

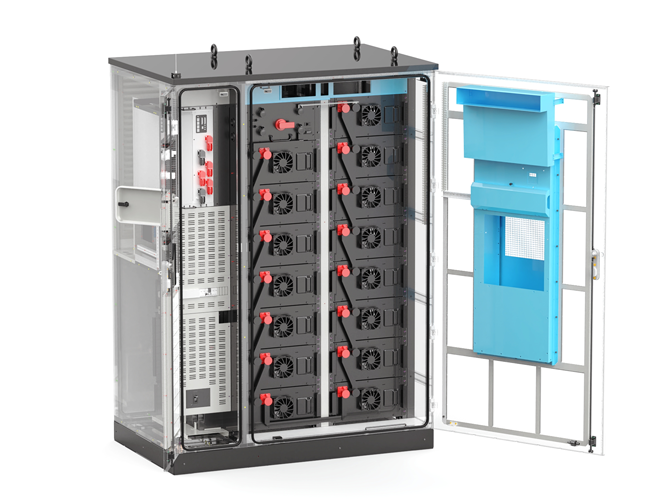

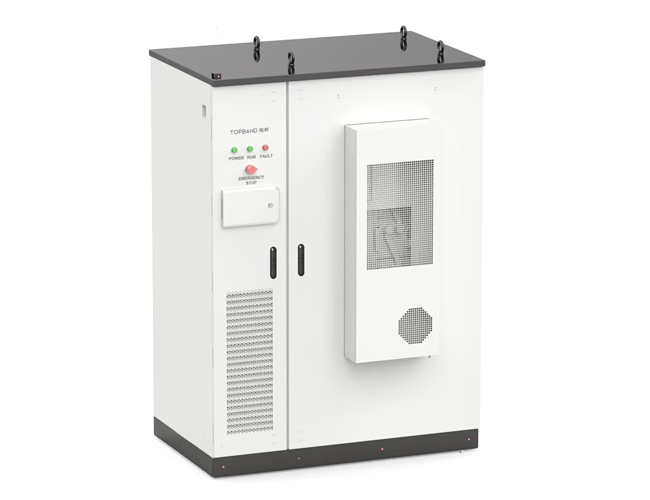

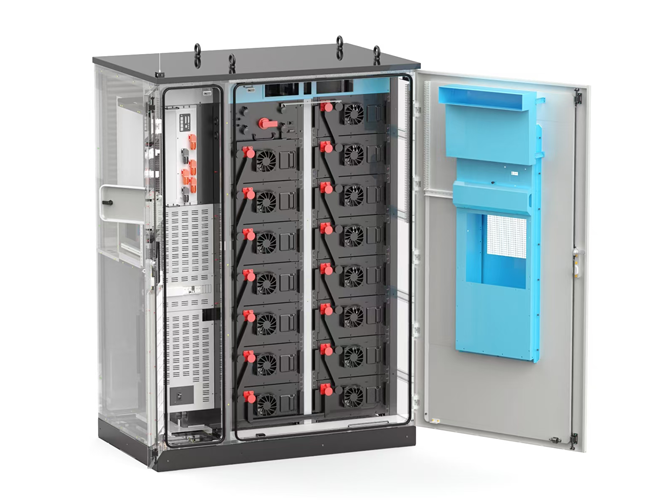

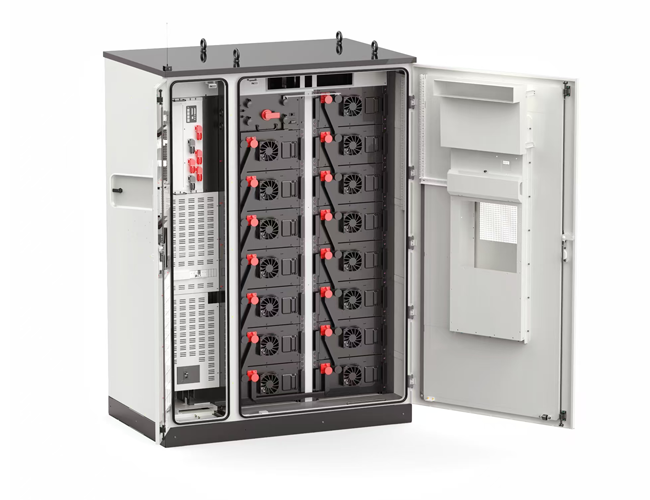

215 Degree Electric Energy Storage Cabinet

• All in One modular design, flexible expansion, easy operation and maintenance.

• Supports 100% unbalanced load and 110% long-term overload.

• Ultra high energy density, small size, easy installation and transportation Adjustable output power, adjustable charging and discharging power, strong adaptability to the power grid.

• Highly integrated design of battery, BMS, PCS, and EMS, with a single self-contained system for quick operation.

• Cluster level independent control and management, capable of achieving 100% charging and discharging.

• Core components of the battery system have passed authoritative tests such as GB/T 36276, GB/T 34131, UL9540A, etc.

Product Introduction

215 degree electric energy storage outdoor cabinet is a high-performance, integrated energy storage system widely used in industrial and commercial, distributed power stations, microgrids, and other scenarios.

Application

: Industrial and commercial energy storage
Used for peak shaving, valley filling, reducing electricity costs, and improving electricity quality.

: Distributed power station
Combined with solar and wind energy to achieve renewable energy storage.

: Electric vehicle charging station
Balance the power demand of the charging station and improve charging efficiency.

: Microgrid
As a backup power source, it ensures uninterrupted power supply for important loads.

: Efficient Energy Management
Support peak shaving and valley filling, power grid voltage regulation, three-phase imbalance control, harmonic control and other functions.
Provide multiple operating modes, including planned charging and discharging, spontaneous self use, backup mode, and AI intelligent mode.

: Intelligent monitoring
and operation and maintenance
Equipped with an intelligent monitoring system that supports local data collection, remote operation and maintenance, and OTA upgrades.
Support big data operation and maintenance, power grid dispatch and control, and remote monitoring.

: Safe and reliable
Adopting a six layer safety protection design, equipped with fire protection systems such as aerosols and perfluorohexane.
Cell level active protection technology supports extremely early cell safety warning.

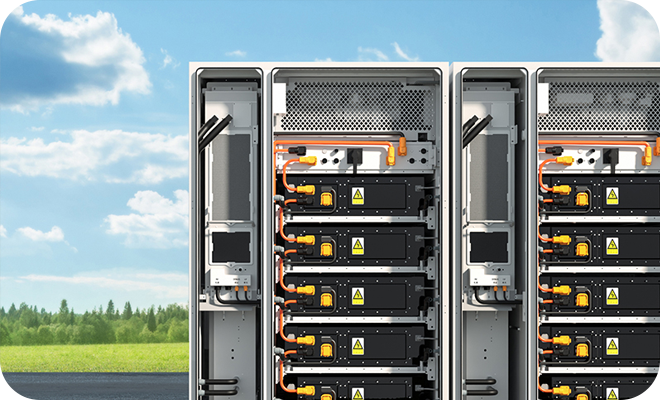

: Flexible expansion and installation
Modular design, supports flexible expansion, and can quickly connect to the grid according to actual needs.
Outdoor floor installation, plug and play, easy to install.

Parameter

Project: Product ModelTB-FL-215KWh-125K

Battery Parameters

Battery typeLFP280Ah

System battery configuration1P240S

DC side battery215kWh

Capacity@BOL

Battery voltage648V~864V

Maximum charge discharge rate＞0.58C

PCS

Rated output power
125kW

Total current waveform distortion rate<3%(rated power)

DC component <0.5%(rated power)

Grid voltage380V±15%

Grid frequency50Hz±5Hz

System parameter

Cabinet size (W*H*D) 1600*2230*1000mm

Cable entry methodThree phase four wire

Grid/Off-gridSupport

Weight≈2.6T

Maximum cycle efficiency88%

Protection levelIP54

Consolidation cabinetSupports up to 8 parallel cabinets

Anti corrosion gradeC4 (C5 optional)

Working temperature-30~+50 ℃ (derating at>45 ℃)

Working humidity0-95% (no condensation)

Maximum working altitude3000m

CoolingIndustrial air conditioning (forced air cooling)

Fire protection configurationS-type aerosol/heptafluoropropane/perfluorohexane/water fire interface (optional)

Communication interface Ethernet

System communication protocol authenticationModbus-TCP/GB/T 36276、GB/T 34131、UL 1973、UL 9540A、IEC 62619、UN 38.3
