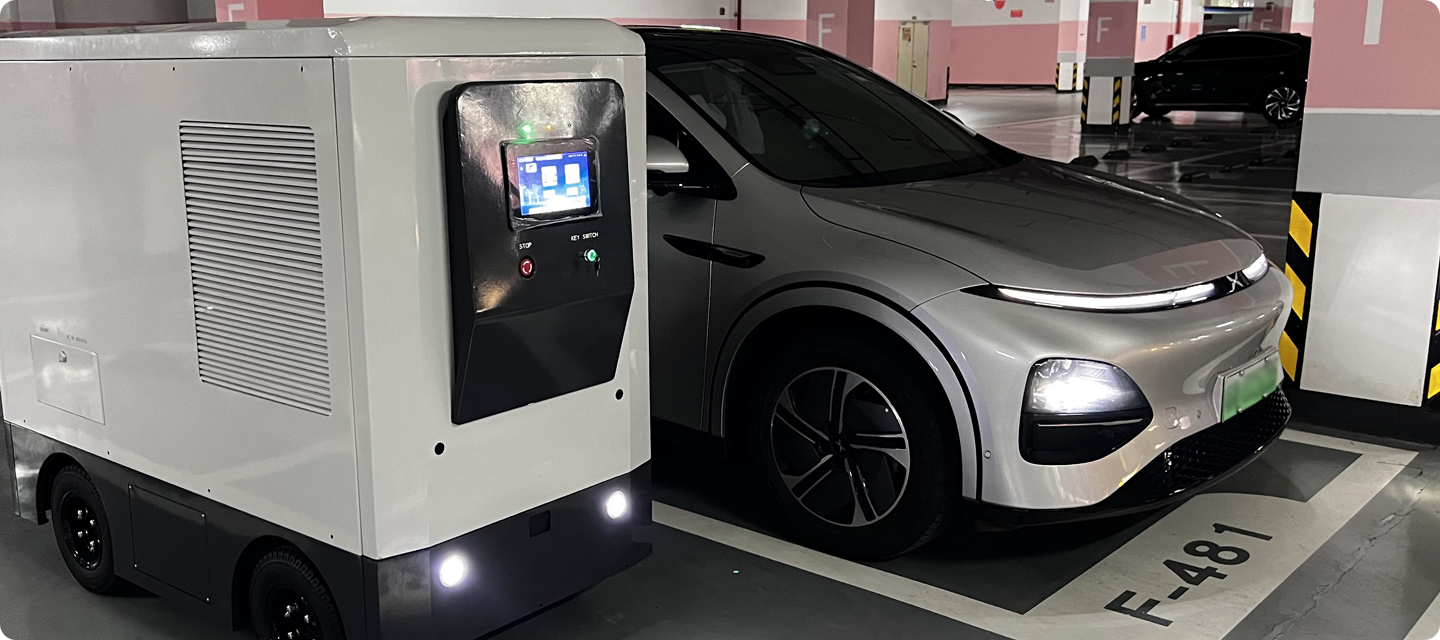

Mobile energy storage charging robot

• High flexibility.

• Fast charging speed.

• High degree of automation.

• Strong security.

• Strong applicability.

Product Introduction

Mobile energy storage charging robot is an intelligent device that integrates energy storage technology, mobile robot technology, and charging technology, aiming to provide users with flexible and efficient charging services. It breaks through the position limitations of fixed charging stations through autonomous mobility, and is suitable for various scenarios, especially in areas with emergency power replenishment, temporary activities, or insufficient charging facilities, with significant advantages.

Application

: Urban power supply

: Business scenario

: Temporary activities

: Areas with insufficient charging facilities

: High precision navigation and automatic operation
Equipped with autonomous driving and multi-sensor fusion navigation capabilities, it can accurately match the position of the vehicle to be charged. The robotic arm, combined with a visual recognition system, can achieve automatic lid opening and precise gun insertion.

: Superior charging performance
With a wide output power range (60kW to 160kW), it is suitable for various vehicle models and can meet the continuous charging needs of vehicles.

: Multiple safety protections
Equipped with multiple protections such as overvoltage/undervoltage protection, overcurrent protection, short-circuit protection, leakage protection, lightning protection, etc., with a protection level of IP54, ensuring safe use.

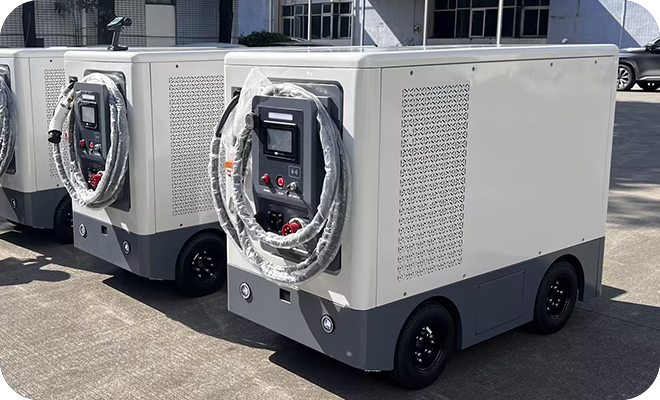

: Flexibility and economy
Breaking free from the limitations of fixed charging stations, realizing the transformation from "finding a station for a car" to "finding a station for a car", reducing the construction cost of charging stations, especially suitable for temporary or low-density charging demand scenarios.

Parameter

Product type	TBMC-M-65-60KW	TBMC-M-100-90KW
Driving style	Remote control (controller)
AC charging voltage	380V(20KW)
Battery	LFP
Battery brand	EVE
Nominal capacity	64.5KWh	99.6KWh
Charging rate	1C
Discharge rate	1C
Battery voltage	614.4V	576V
Depth of discharge(DOD)	94%
Number of charging cycles	5000
Rated voltage	3.2V
Rated capacity	105Ah	173Ah
AC input	380V(20KW)
AC charging current	32A
DC input voltage	250V-1000V DC(60KW）
DC input current	0-150A	0-200A
IP	IP54
Detection	Direct detection
Rated power	60 KW	90 KW
DC output voltage range	200V-1000V DC
DC output current range	0-150A	0-200A
Safety protection	Overcurrent, overvoltage, undervoltage, overheating, overload protection, etc
Network mode	4G
Charging gun length	7m
Heat dissipation	Liquid cooling
Display	7 inches
Equipment size	2034.59201490.5mm
Weight	1200kg	1450kg
Working temperature/°C	-10°C-60°C
Altitude	2000m
Noise	≤60dB
Relative humidity	5％～95％RH, no condensation
Wheelbase(mm)	1100
Curb weight(kg)	250
Load(kg)	1200
Ground clearance(mm)	100
Parking slope(%)	25
Maximum climbing gradient under full load(%)	20
Minimum turning radius(m)	2.5
Drive mode	Rear-wheel drive
Front brake type	Drum brake
Rear brake type	Drum brake
Parking brake type	EPB electronic parking (rear wheel with wheel speed sensor)
Drive motor drive power (kw)	3
Full load range(km)	Depending on the capacity of the vehicle's energy storage battery
Maximum speed(km/h)	35
Voltage platform(V)	72V/320V
Battery capacity(Ah)	Capacity of energy storage battery for the whole vehicle
Control communication mode	CAN2.0B
