Product Introduction

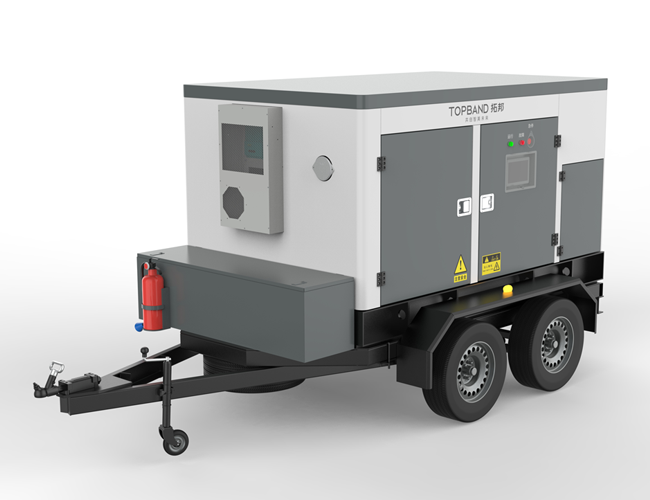

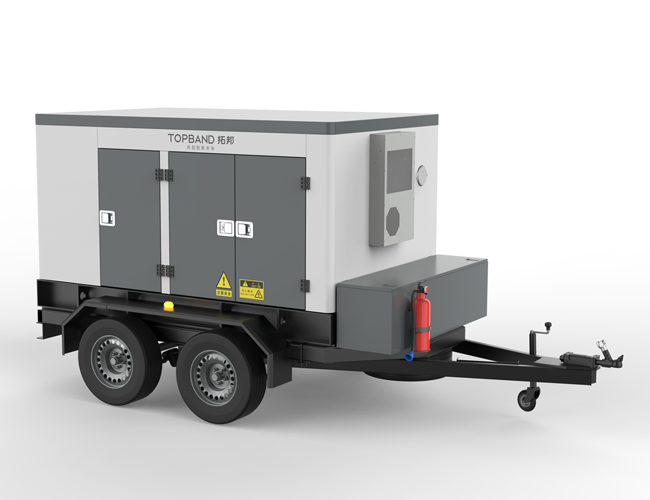

Mobile energy storage vehicles (trailer type) have become an important component of modern energy solutions due to their high mobility, large capacity, intelligent management, and environmental protection and energy conservation advantages. They are widely used in emergency, outdoor, and temporary power scenarios.

Application

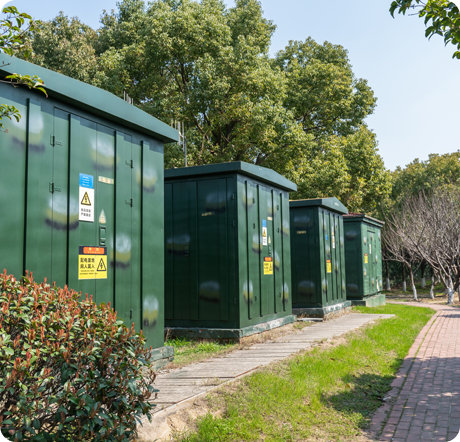

: Emergency power supply and power protection

: Uninterrupted operation of the power grid

: Emergency charging for electric vehicles

: Outdoor and temporary construction electricity

: Emergency rescue and disaster relief

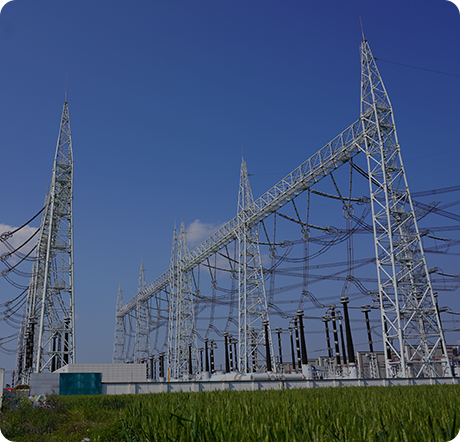

: Distributed energy and microgrid

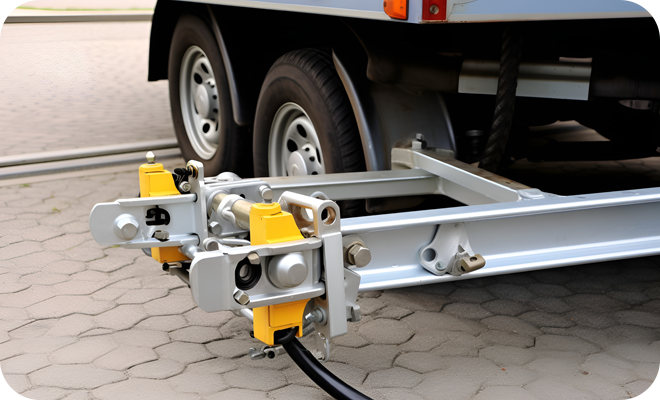

: High mobility
Trailer design: It can be easily towed by vehicles, adapts to various terrains, and is easy to deploy quickly. Flexible mobility: Suitable for remote areas, disaster sites, and other scenarios that cannot be covered by fixed power grids.

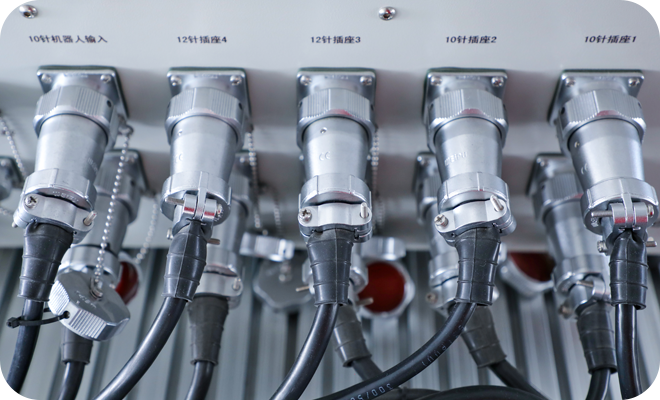

: Multi output interface
Equipped with an intelligent monitoring system that supports local data collection, remote operation and maintenance, and OTA upgrades.
Support big data operation and maintenance, power grid dispatch and control, and remote monitoring.

: Intelligent management
BMS system: Built in battery management system, real-time monitoring of battery status to ensure safe operation. Remote monitoring: Supports remote control and status monitoring to improve management efficiency.

: Safe and reliable
Multiple protection: Equipped with overcharge, overdischarge, short circuit and other protection functions to ensure safe use. Durable shell: Designed with shock resistance, waterproof, and dustproof features, suitable for harsh environments.

Parameter

Model	C60G69115-T-69Kwh	C60G69115-T-161Kwh	C60G69115-T-200Kwh
DC side
Nominal capacity	69.12Kwh	161Kwh	200Kwh
Number of cycles	4000
Battery voltage range	360-525V
Maximum input current	60A	315A	388A
Output side
Rated output power	30Kw	80Kw	100Kw
Maximum output power	38Kw	90Kw	110Kw
Type of output	Three phase four wire
Rated voltage	220V/380V
Rated output current	45A	143A	178A
Maximum output current	57A	160A	196A
Isolation method	Optional selection
Grid connected operation
Allowable range of grid volta	340-440V
Grid frequency	45-55Hz
THDI	≤3％
Power factor	-1~+1
Off grid operation
Rated voltage	400VAC
Voltage range	340-440V
Rated output frequency	50Hz
Capable of carrying unbalanced loads	100%
THDU	≤3％
Overload capacity	120% 1 minute
Other parameters
Design lifespan	10 years
Cooling	Air cooling
Relative humidity	5-95%
Protection level
Off grid automatic switching function	10ms
Off grid switching time	10ms
Communication interface	RS485/CAN/ETHernet
Cloud platform terminal	Alibaba Cloud
Vehicle parameters
Vehicle size	5100x2300x2100mm	6000x2300x2100mm	7000x2300x2100mm
Vehicle weight	2.5T	3.5T	4.5T
Top speed	80Km/h
Hydraulic support system	Yes
Sound insulation layer	Yes
Cable and cable winding machine	Optional selection
