65 Degree Electric Fixed Mobile Storage And Charging

•Flexibility and convenience: Provide charging services for electric vehicles anytime, anywhere, especially in areas where fixed charging facilities are insufficient or charging stations cannot be installed.

• Improve the utilization rate of charging facilities: Move between different locations according to actual needs to avoid idle, thereby improving the utilization rate and economic benefits of charging facilities.

• Reduce power grid load: Break free from the constraints of the power grid, achieve peak shaving and valley filling, reduce power grid load, and make the charging process safer and more secure. Breaking through spatial limitations: Mobile storage and charging products are not limited by fixed locations.

Product Introduction

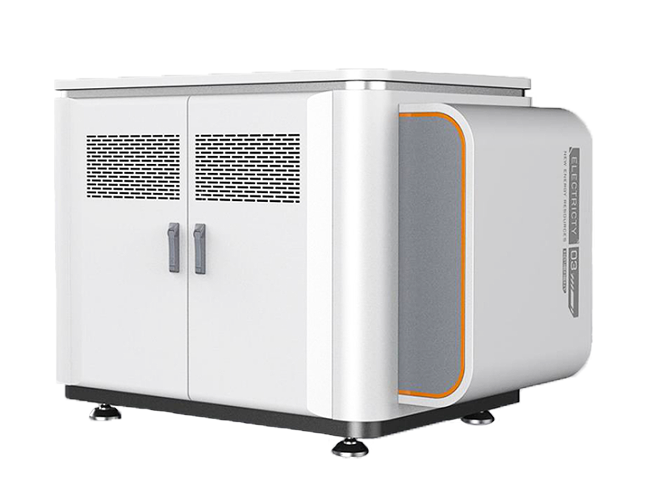

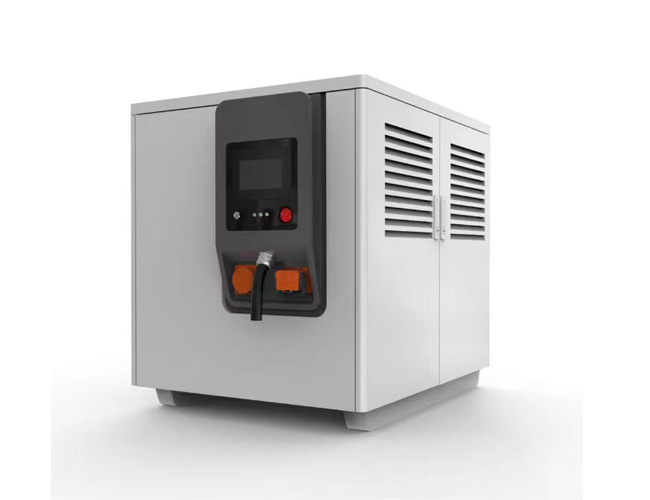

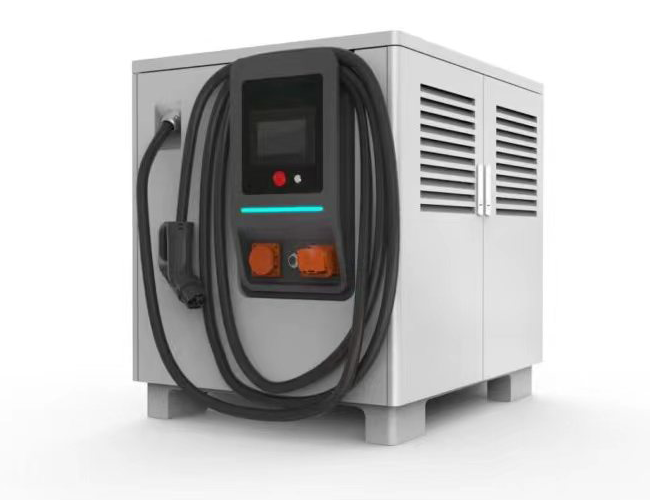

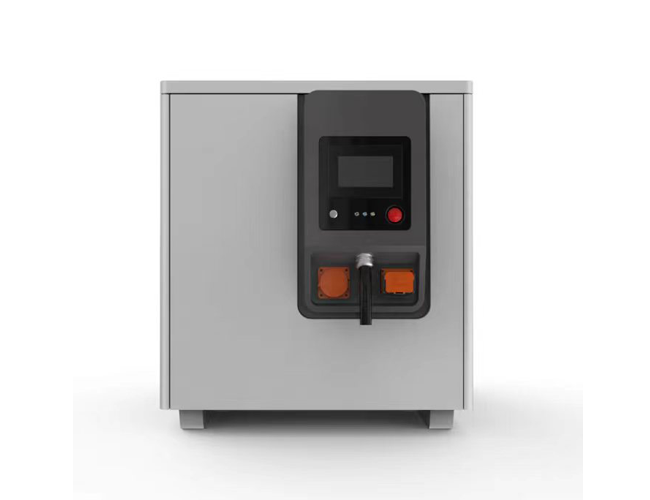

Mobile energy storage charging station is a new type of device that combines energy storage technology and charging function. It provides flexible and convenient charging services for electric vehicles through a built-in energy storage battery system, while possessing the dual characteristics of mobility and energy storage.

Application

: Expressway service area

: Residential areas and community parking lots

: Commercial complexes and scenic parking lots

: Emergency rescue

: Supplement to urban and rural charging infrastructure

: Industrial parks and logistics parks

: Home backup power supply

: Outdoor activities and tourism

: Flexibility and convenience
Mobile energy storage charging stations can move freely without the need for fixed installation, providing charging services for electric vehicles anytime and anywhere, especially suitable for areas where fixed charging facilities are insufficient or charging stations cannot be installed.

: Integration of energy storage and charging
The equipment stores electrical energy during low electricity consumption periods and charges electric vehicles during high electricity consumption periods or grid failures, achieving "peak shaving and valley filling" and relieving grid pressure.

: Efficient charging capability
Supports high-power output, such as some products with output power ranging from 30kW to 180kW, meeting the charging needs of different types of vehicles.

: Intelligent management system
Equipped with an intelligent management system that supports self diagnosis, remote monitoring, and intelligent scheduling. Users can call for charging services with just one click through a mobile app or cloud platform.

Parameter

Model	TBMC-40-40KW	TBMC-60-60KW	TBMC-140-120KW	TBMC-160-120KW
Battery parameters
Charging voltage	DC/AC380V
Charging standard	CCS1/CCS2/CHAdeMO/GBT//Tesla
Battery type	LiFePO4
Nominal capacity	40KWh	60KWh	140KWh	160KWh
Charging rate	0.5C
Discharge rate	1C
Battery voltage	384V	614.4V	614.4V	512V
Depth Of discharge	80%
Number of charging cycles	6000
Battery pack voltage	384V	614.4V	614.4V	512V
Rated voltage	3.2V
Rated current	105A	105A	230A	315A
Cooling	Forced air cooling	Liquid cooling
Protection grade	IP54
Insulation method	Direct detection
Charging parameters
Rated power	40KW	60 KW	120 KW	120 KW
Output voltage	DC200V-750V
Output current	0-100A	0-150A	0-250A	0-250A
Charge mode	Fully automatic, fixed power, fixed quantity, fixed time
Safety protection	Overvoltage, overcurrent, low voltage ESD、 Lightning protection, overcharging, overload, fire, overheating, waterproofing, leakage and chip protection
Payment method	OCPP
Network mode	4G module
Network protocol	OCPP network communication
Charging gun	CCS1/CCS2/CHAdeMO/GBT//Tesla
Cable length	7 meters(customizable)
HMI	7-inch touchscreen (charging station)
Language	English (customizable)
Equipment parameters
Dimensions L * W * H/mm	10009501050	12509251050	224811261021	200012301087
Weight/kg	550kg	766kg	1390kg	1500kg
Operation temperature/°C	-10°C-60°C
Altitude/m	2000m
Noise/dB	≤60dB
Humidity/RH	5％～95％RH, non condensing
Authentication	CE
