> New Energy > Mobile Energy Storage > Lift-mounted mobile energy storage charging station

Mobile Energy Storage

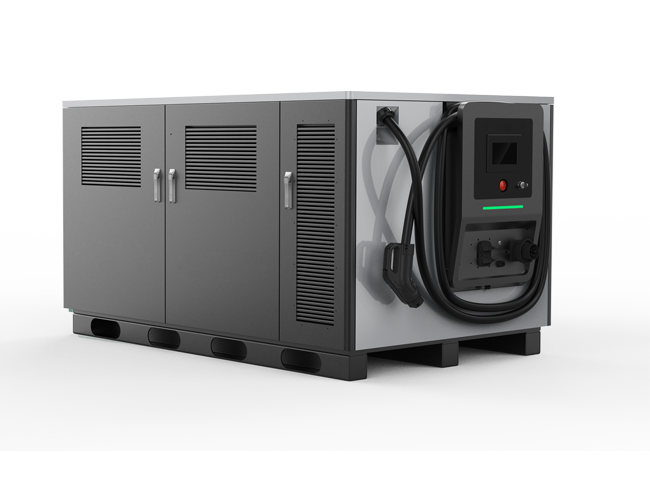

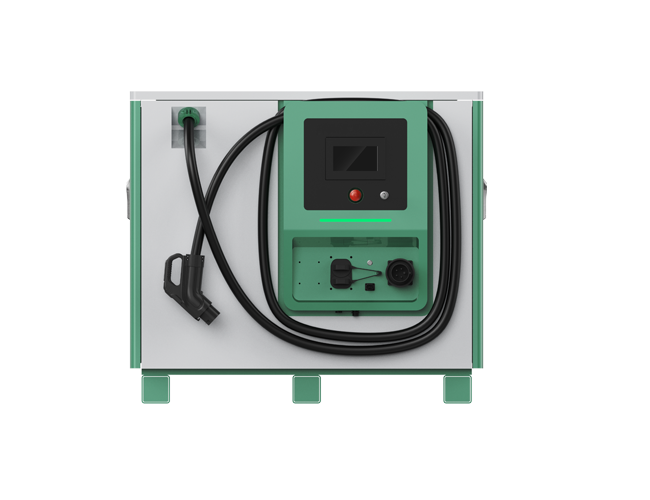

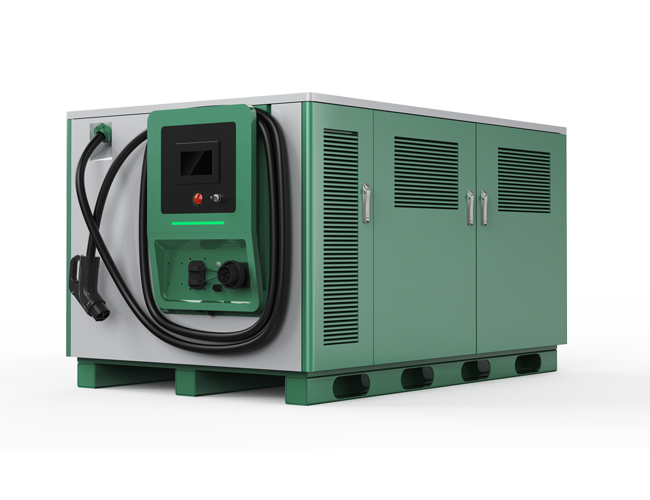

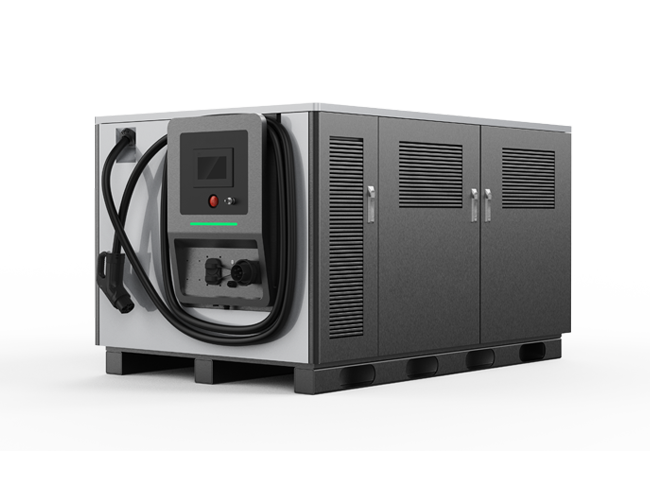

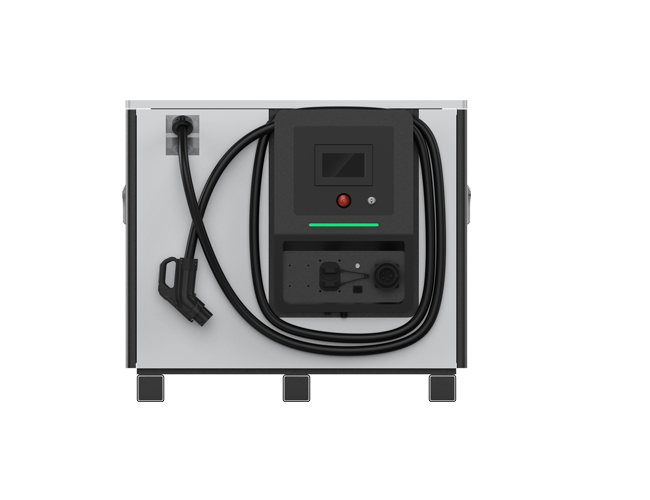

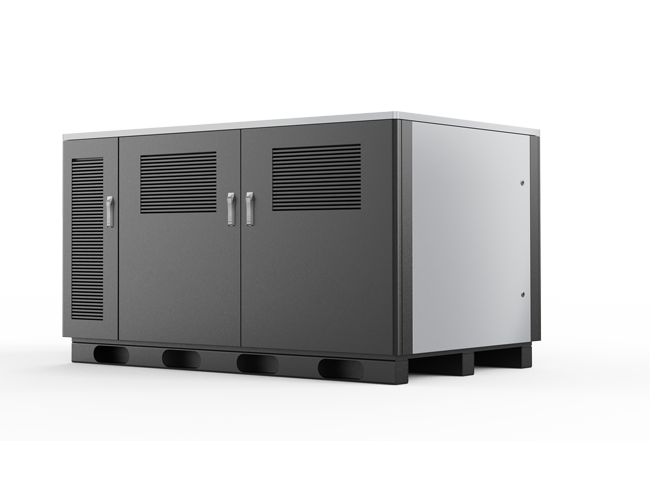

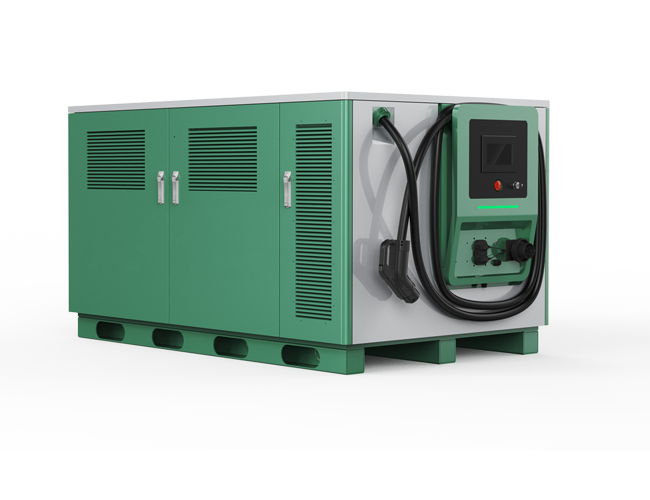

Lift-mounted mobile energy storage charging station

•Flexibility and convenience: Provide charging services for electric vehicles anytime, anywhere, especially in areas where fixed charging facilities are insufficient or charging stations cannot be installed.

• Improve the utilization rate of charging facilities: Move between different locations according to actual needs to avoid idle, thereby improving the utilization rate and economic benefits of charging facilities.

• Reduce power grid load: Break free from the constraints of the power grid, achieve peak shaving and valley filling, reduce power grid load, and make the charging process safer and more secure. Breaking through spatial limitations: Mobile storage and charging products are not limited by fixed locations.

Lift-mounted mobile energy storage charging station: Product Introduction Video Showcase Insurance Page Testing and Certification Product Parameters Application Cases

Overview

High-power mobile energy storage charging station with a battery capacity of 161kWh and an output power of 120kw. It has a medium to large size and uses lithium iron phosphate batteries, which are safe and stable with constant output power. Its application scenarios are generally emergency rescue charging, on-site charging, mobile energy storage charging stations, etc. (including fire protection system)

Parameter

Project: Product Name161KWh

Battery Parameters

Charging voltageDC/AC380V

Charging standardCCS1/CCS2/CHAdeMO/GBT//Tesla

Type of BatteryLiFePO4

Nominal capacity161KWh

Charge rate0.5C

Discharge rate1C

Battery voltage＞512V

Depth of discharge80%

Charge Cycles6000

Pack voltage512V

Rated voltage3.2V

Rated frequency315A

CoolingLiquid cooling

IP levelIP54

Isolation methodDirect insulation

Charging parameters

Rated Power
120 KW

Output VoltageDC200V-750V

Output Current0-250A

Safety ProtectionsOvervoltage、Overcurrent、Low-voltage、ESD、Lighting、Overcharge、Overload、Fire、Overheat、Waterproof、Leakage and Chip Protection

Payment methodOCPP

Networking method4G module

Networking protocolOCPP Network Communication

Charging GUNCCS1/CCS2/CHAdeMO/GBT//Tesla

Cable Length7 Meters(Customizable)

HMI7-inch touch screen (charging station)

LanguageEnglish(Customizable)

Machine parameters

Dimension L*W*H/mm2000*1230*1087

Weight/Kg1500Kg

Operating temperature/°C-10°C-60°C

Altitude/m2000m

Noise/dB≤60dB

Relative humidity/RH5％～95％RH，non-condensing

CertificateCE
