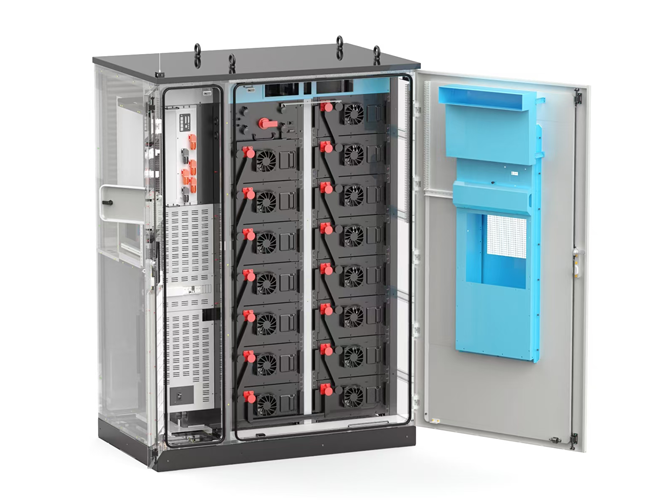

Energy Storage Cabinet

test

• All in One modular design, flexible expansion, easy operation and maintenance.

• Supports 100% unbalanced load and 110% long-term overload.

• Ultra high energy density, small size, easy installation and transportation Adjustable output power, adjustable charging and discharging power, strong adaptability to the power grid.

• Highly integrated design of battery, BMS, PCS, and EMS, with a single self-contained system for quick operation.

• Cluster level independent control and management, capable of achieving 100% charging and discharging.

• Core components of the battery system have passed authoritative tests such as GB/T 36276, GB/T 34131, UL9540A, etc.

Product Introduction

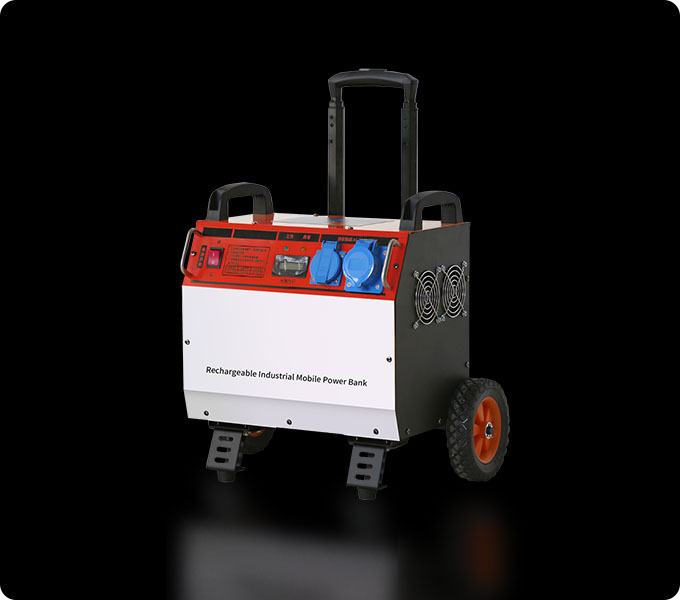

High power portable power bank is a small, lightweight, and easy to carry alternative solution for small diesel generators, designed to provide reliable power support for various portable electronic devices, outdoor activities, and emergency situations. A rechargeable high-power power supply applied in the field of temporary electricity, with stable output, suitable for various 220V electric tools and electrical equipment, improving work efficiency, optimizing working environment, small size and light weight, can be used for various emergency electricity: emergency construction, road construction, indoor construction, building construction, emergency lighting.

Road Work

Road Work
Construction
Field work
Tunnel construction
Interior decoration
1Road Work

: Core battery
replacement process
NFC instantly senses and accurately detects battery status. The current replacement process is efficient and seamless, meeting the needs of rapid battery replacement and rekindling your riding passion

: Smart interconnection
upgrade
4G+ high-speed networking ensures real-time interaction between devices and cloud data, supports remote OTA upgrades, efficient human-computer interaction, and real-time data acquisition

Application

: Urban architecture and residential areas
As the core equipment of the power distribution system, it meets the electricity needs of residents and businesses.

: Industry and Mining
As the core equipment of the power distribution system, it meets the electricity needs of residents and businesses.

: Temporary construction
As the core equipment of the power distribution system, it meets the electricity needs of residents and businesses.

: 11 Industry and Mining
As the core equipment of the power distribution system, it meets the electricity needs of residents and businesses.

Structural safety

Three-level industrial protection, waterproof, dustproof, shockproof, pressure-resistant design, tested in various harsh environments

All-steel frame
strong and durable

Silent wheels
silent mats

Pull rod design
convenientand flexible

Easily cope with various Scenarios

Construction / field work / road construction / tunnel construction / interior decoration /emergency power supply / outdoor live broadcast

3000W

High power ,long battery life

~~BMS~~Multi-Stage intelligent
Fast Charging Charging time
is less than ~~2 hours~~ ~~80%~~full in ~~1 hours~~

High and low temperature protection

Overload / Over discharge / Short circuit / Leakage / Over voltage / Low voltage / Over current / Over charge

Full-area power safety protection AC pure sine wave current

BMS intelligent battery management system Equipped with 10 core protections

Output Power

Output Quality

Battery life

Noise

Carbon Emissions

Machine weight

Cost

Mobile Power

3KW

Stablize

2-3 hoursSingle charge

≤60dB

23KG

0.5 yuan/kWhCharge

Mobile Power

3KW

Unstable

Need to keep refueling

80-100dB

highCO2 NOX

40KG

1.5 yuan/kWhFuel

*Based on 6 hours of use per day, the cost savings per year compared to gasoline generators is about 2,000 yuan

Product Parameters

Model	TBMP-2000	TBMP-3000	TBMP-3000N	TBMP-3500M	TBMP-3500	TBMP-4000	TBMP-3500-MAX
Output voltage	AC 220V
Rated power	2000W	3000W	3000W	3500W	3500W	4000W	3500W
Peak power	4000W	6000W	7500W	3500W	7000W	7000W	7000W
Output waveform	Pure sine wave
Waveform distortion	THD<3%
Frequency	50HZ±3，60HZ±3
Output voltage	220V-240VAC±5%
Output jack	Waterproof 10A, Waterproof 16A, Multi functional interface					Waterproof 10A, Waterproof 16A USB\type-c、Multi functional interface	Waterproof 10A, Waterproof 16A, Multi functional interface
Battery capacity	1700Wh	1700Wh	1800Wh	2405Wh	2405Wh	2662Wh	5627Wh
Battery type	Vehicle grade ternary lithium battery					LiFePO4	Vehicle grade ternary lithium battery
Charging time	≤2h		≤1.5h	≤2h
Built in welding current	/						10-150A
Protection function	Overload, undervoltage, short circuit, leakage, abnormality, BMS protection, overcharge, high and low temperature
External battery pack	/			Yes
Fast battery swapping	Yes				/
Bluetooth	Android, Apple IOS
Operating temperature	-60℃-60℃					-20℃-45℃	-60℃-60℃
Waterproof grade	IPX5
Dimensions (W × D × H) mm	420x280x350	450x280x380	450x280x380	440x250x336	465X300X410	560X310X410	583X467X500
Battery capacity	20kg	22kg	22kg	22.4kg	26kg	29kg	48kg
Service life	8-10 years
Authentication	FCC、UN38.3、CE

Energy Storage Cabinet

test

test

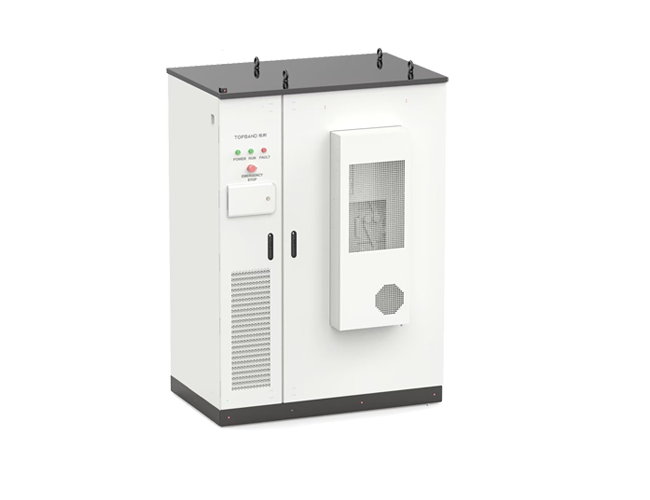

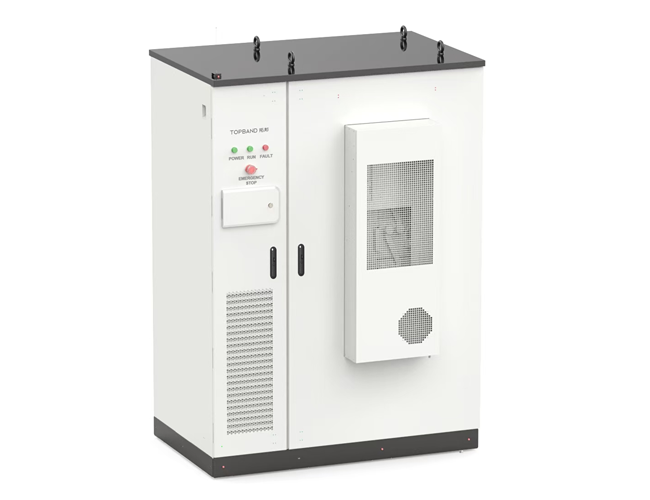

215 Degree Electric Energy Storage Cabinet

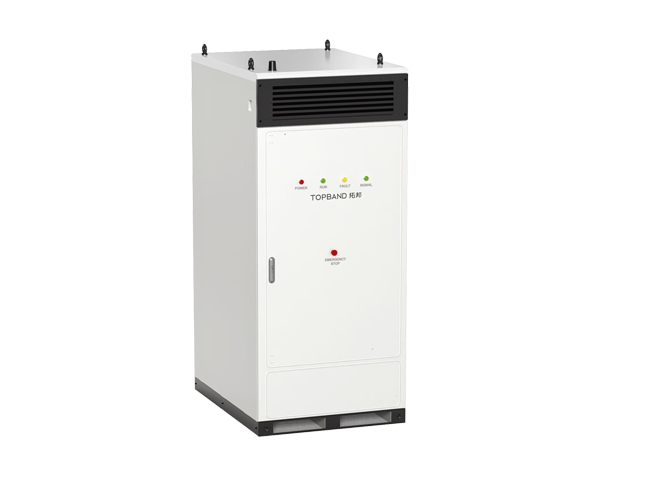

261 Degree Electric Energy Storage Cabinet
