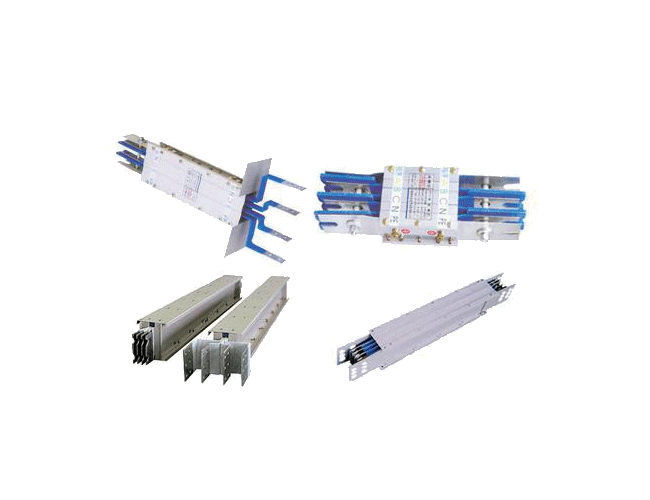

Dense enclosed bus duct

•High protection level

•Good heat dissipation performance

•Flexible branch connections

•High current carrying capacity

•Safe and reliable

•Strong anti harmonic ability

Product Introduction

Dense enclosed bus duct is a fully enclosed, high protection level power transmission equipment widely used in power distribution and transmission systems in industrial, commercial, and civil buildings. It adopts copper or aluminum materials with high conductivity, and achieves efficient and safe power transmission through reasonable structural design and insulation materials.

Application

: Industrial plant
Provide stable and reliable power supply for large mechanical equipment, and adapt to complex production line layouts.

: High-rise building
As the main line in the electrical shaft, it achieves vertical power supply to meet the electricity demand of floor equipment.

: Commercial complex
Provide efficient power transmission for lighting, air conditioning and other equipment, reducing energy consumption and maintenance costs.

: Rail transit
Meet the exclusive power supply needs of various regions in the rail transit system and ensure the stable operation of the power system.

: Public facilities and new energy
Suitable for scenarios such as airports, docks, subways, and comprehensive construction projects.

: High protection level
The shell adopts a fully enclosed design, with a protection level of up to IP54 to IP65, which can effectively prevent the intrusion of dust, water vapor, and harmful gases.

: Good heat dissipation performance
The shell is made of aluminum alloy profile with heat dissipation teeth, which has excellent heat dissipation effect and ensures the stability and low voltage drop of the bus duct during high load operation.

: Flexible branch connections
Reserve sockets at any position, support quick connections and branch power supply, and meet complex power distribution needs.

: High current carrying capacity
The bus duct is made of T2 electrolytic copper material, with high purity and conductivity, and a current density as low as 2A/mm ², ensuring high current transmission.

Parameter	Parameter values
Rated voltage	380V
Voltage resistance level	690V
Insulation resistance	≥20MΩ
Rated frequency	50Hz
Rated insulation voltage	660V
IP	IP55/IP65
Material	T2 electrolytic copper, purity ≥ 99.99%
Insulation material	Flame retardant material, capable of withstanding high temperatures up to 150 ℃
Grounding system	N-wire with 100% phase line capacity, PE wire ≥ 50% phase line capacity
